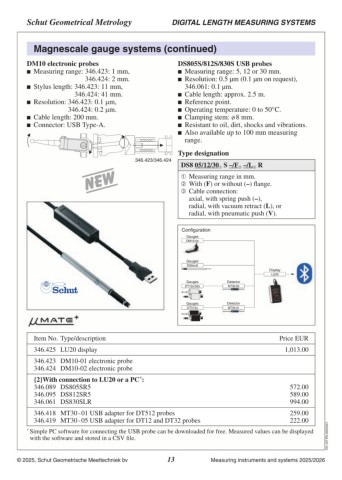

Page 13 - Schut Catalog
P. 13

Schut Geometrical Metrology                                  DIGITAL LENGTH MEASURING SYSTEMS

Magnescale gauge systems (continued)

DM10 electronic probes                                       DS805S/812S/830S USB probes
	 Measuring range: 346.423: 1 mm,                           	 Measuring range: 5, 12 or 30 mm.
                                                             	 Resolution: 0.5 µm (0.1 µm on request),
  	 346.424: 2 mm.
	 Stylus length: 346.423: 11 mm,                              346.061: 0.1 µm.
                                                             	 Cable length: approx. 2.5 m.
  	 346.424: 41 mm.                                          	 Reference point.
	 Resolution: 346.423: 0.1 µm,                              	 Operating temperature: 0 to 50°C.
                                                             	 Clamping stem: ø 8 mm.
  	 346.424: 0.2 µm.                                         	 Resistant to oil, dirt, shocks and vibrations.
	 Cable length: 200 mm.                                     	 Also available up to 100 mm measuring
	 Connector: USB Type-A.
                                                               range.

                                            346.423/346.424  Type designation
                                                              DS8 05/12/30 S –/F –/L R
                                                               Measuring range in mm.
                                                               With (F) or without (–) flange.
                                                               Cable connection:

                                                                 axial, with spring push (–),
                                                                 radial, with vacuum retract (L), or
                                                                 radial, with pneumatic push (V).

                                                             Configuration

                                                                 Gauges
                                                                 DM10-0x

                                                              Gauges                  Display
                                                              DS8xxS                   LU20

                                                              Gauges        Detector
                                                             DT12x/32x      MT30-05

                                                              Gauges        Detector
                                                               DT512x       MT30-01

Item No. Type/description                                                             Price EUR

346.425 LU20 display                                                                                  1,013.00

346.423 DM10-01 electronic probe
346.424 DM10-02 electronic probe

{2}With connection to LU20 or a PC *:                                                                 572.00
346.089 DS805SR5                                                                                      589.00
346.095 DS812SR5                                                                                      994.00
346.061 DS830SLR

346.418 MT30 - 01 USB adapter for DT512 probes                                                        259.00    C01.337.EN.20250321
346.419 MT30 - 05 USB adapter for DT12 and DT32 probes                                                222.00

*	Simple PC software for connecting the USB probe can be downloaded for free. Measured values can be displayed
 with the software and stored in a CSV file.
