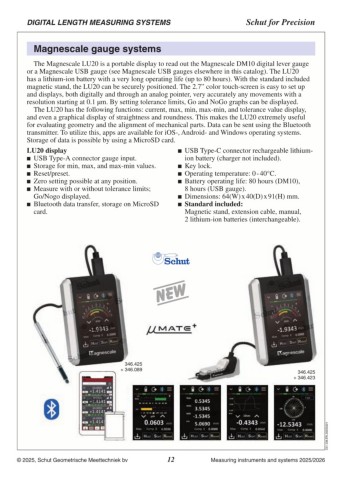

Page 12 - Schut Catalog

DIGITAL LENGTH MEASURING SYSTEMS Schut for Precision

Magnescale gauge systems

The Magnescale LU20 is a portable display to read out the Magnescale DM10 digital lever gauge
or a Magnescale USB gauge (see Magnescale USB gauges elsewhere in this catalog). The LU20
has a lithium-ion battery with a very long operating life (up to 80 hours). With the standard included
magnetic stand, the LU20 can be securely positioned. The 2.7” color touch-screen is easy to set up
and displays, both digitally and through an analog pointer, very accurately any movements with a
resolution starting at 0.1 μm. By setting tolerance limits, Go and NoGo graphs can be displayed.

The LU20 has the following functions: current, max, min, max-min, and tolerance value display,
and even a graphical display of straightness and roundness. This makes the LU20 extremely useful
for evaluating geometry and the alignment of mechanical parts. Data can be sent using the Bluetooth
transmitter. To utilize this, apps are available for iOS-, Android- and Windows operating systems.
Storage of data is possible by using a MicroSD card.

LU20 display  USB Type-C connector rechargeable lithium-
 USB Type-A connector gauge input. ion battery (charger not included).
 Storage for min, max, and max-min values.
 Reset/preset.  Key lock.
 Zero setting possible at any position.  Operating temperature: 0 - 40°C.
 Measure with or without tolerance limits;  Battery operating life: 80 hours (DM10),

Go/Nogo displayed. 8 hours (USB gauge).
 Bluetooth data transfer, storage on MicroSD  Dimensions: 64(W) x 40(D) x 91(H) mm.
 Standard included:
card.
Magnetic stand, extension cable, manual,
2 lithium-ion batteries (interchangeable).

346.425 346.425
+ 346.089 + 346.423
