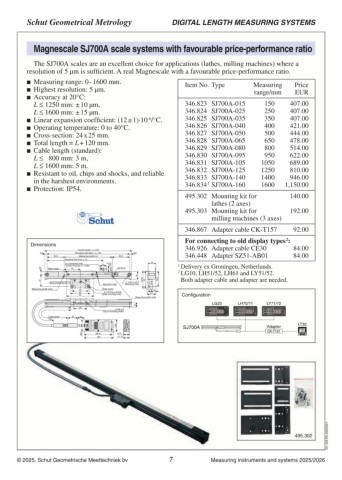

Schut Geometrical Metrology DIGITAL LENGTH MEASURING SYSTEMS

Magnescale SJ700A scale systems with favourable price-performance ratio

The SJ700A scales are an excellent choice for applications (lathes, milling machines) where a
resolution of 5 µm is sufficient. A real Magnescale with a favourable price-performance ratio.

 Measuring range: 0 - 1600 mm. Item No. Type Measuring Price
 Highest resolution: 5 µm. range/mm EUR
 Accuracy at 20°C:
346.823 SJ700A‑015 150 394.00
L ≤ 1250 mm: ± 10 µm, 346.824 SJ700A‑025 250 394.00
L ≤ 1600 mm: ± 15 µm. 346.825 SJ700A‑035 350 394.00
 Linear expansion coefficient: (12 ± 1)·10‑6/°C. 346.826 SJ700A‑040 400 407.00
 Operating temperature: 0 to 40°C. 346.827 SJ700A‑050 500 429.00
 Cross-section: 24 x 25 mm. 346.828 SJ700A‑065 650 462.00
 Total length = L + 120 mm. 346.829 SJ700A‑080 800 497.00
 Cable length (standard): 346.830 SJ700A‑095 950 602.00
L ≤ 800 mm: 3 m, 346.831 SJ700A‑105 1050 666.00
L ≤ 1600 mm: 5 m. 346.832 SJ700A‑125 1250 783.00
 Resistant to oil, chips and shocks, and reliable 346.833 SJ700A‑140 1400 915.00
in the harshest environments. 346.834 1 SJ700A‑160 1600 1,112.00
 Protection: IP54.
495.302 Mounting kit for 140.00
lathes (2 axes) 192.00

495.303 Mounting kit for
milling machines (3 axes)

346.867 Adapter cable CK‑T157 89.00

Dimensions For connecting to old display types 2: 81.00
346.926 Adapter cable CE30
6.5 Overall length = L + 120 6.5 346.448 Adapter SZ51‑AB01 84.00
53.5 Mounting hole pitch = L + 107 53.5

Slider holder Measuring length (L) Serial no.

Mounting hole pitch x 1/2

5 x 7 elongated hole 24
* Center footplate (L ≥ 1250) 20 5 1 Delivery ex Groningen, Netherlands.
10.5 2 LG10, LH51/52, LH61 and LY51/52.
37 9.5 50 25 Both adapter cable and adapter are needed.
(53.6)
52
46.5
2 - ø 4.5 x ø 5.5
Alignment mark (Mounting hole)

Measuring length mark 50 Slider center 14 9

60 2 - ø 5 hole, ø 9 hole (27) Configuration
85 (Slider mounting hole)
Measuring length mark

40 2 - M4 x 8(38)
30 30 (Tap of mounting slider) 14

Cable length MG20A-DK
100

(36) (86.5) (17)
(91) (17.7)

495.302 C01.205.EN.20241127
