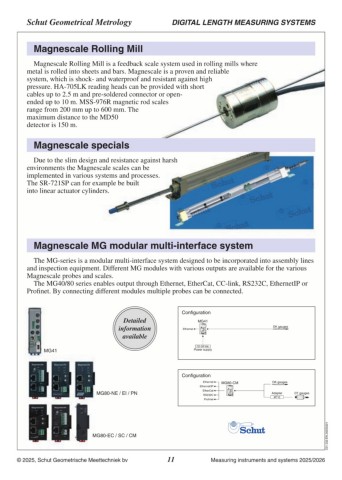

Schut Geometrical Metrology                                       DIGITAL LENGTH MEASURING SYSTEMS

  Magnescale Rolling Mill

  Magnescale Rolling Mill is a feedback scale system used in rolling mills where
metal is rolled into sheets and bars. Magnescale is a proven and reliable
system, which is shock- and waterproof and resistant against high
pressure. HA-705LK reading heads can be provided with short
cables up to 2.5 m and pre-soldered connector or open-
ended up to 10 m. MSS-976R magnetic rod scales
range from 200 mm up to 600 mm. The
maximum distance to the MD50
detector is 150 m.

  Magnescale specials

  Due to the slim design and resistance against harsh
environments the Magnescale scales can be
implemented in various systems and processes.
The SR-721SP can for example be built
into linear actuator cylinders.

  Magnescale MG modular multi-interface system

  The MG-series is a modular multi-interface system designed to be incorporated into assembly lines
and inspection equipment. Different MG modules with various outputs are available for the various
Magnescale probes and scales.

  The MG40/80 series enables output through Ethernet, EtherCat, CC-link, RS232C, EthernetIP or
Profinet. By connecting different modules multiple probes can be connected.

         Detailed                                                     Configuration                              DK gauges
       information
                                                                                   MG41
        available
                                                                       Ethernet
MG41 
                                                                                      12 - 24 Vdc
                                                                                 Power supply

                                                                      Configuration                     MG80-CM  DK gauges

       MG80-NE / EI / PN                                                                     Ethernet            Adapter    DT gauges
                                                                                         Ethernet/IP               MT13

                                                                                             EtherCat
                                                                                             RS232C
                                                                                              Profinet

                                               MG80-EC / SC / CM                                                                       C01.332.EN.20250321
