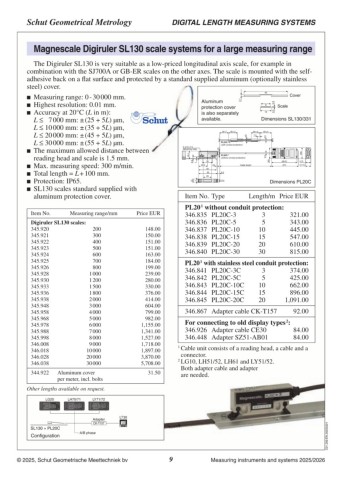

Page 9 - Schut Catalog

Schut Geometrical Metrology DIGITAL LENGTH MEASURING SYSTEMS

Magnescale Digiruler SL130 scale systems for a large measuring range

The Digiruler SL130 is very suitable as a low-priced longitudinal axis scale, for example in
combination with the SJ700A or GB‑ER scales on the other axes. The scale is mounted with the self-
adhesive back on a flat surface and protected by a standard supplied aluminum (optionally stainless
steel) cover.

 Measuring range: 0 - 30 000 mm. Aluminum 2.7 40 Cover
 Highest resolution: 0.01 mm. protection cover 0.3 0.8
 Accuracy at 20°C (L in m): is also separately 9 Scale
available.
L ≤ 7 000 mm: ± (25 + 5L) µm, 10
L ≤ 10 000 mm: ± (35 + 5L) µm,
L ≤ 20 000 mm: ± (45 + 5L) µm, Dimensions SL130/331
L ≤ 30 000 mm: ± (55 + 5L) µm.
 The maximum allowed distance between 30 +10 30 ± 2 30 ± 2 40 ± 5
reading head and scale is 1.5 mm. 0 7.5
 Max. measuring speed: 300 m/min.
 Total length = L + 100 mm. 2 - ø 5 x 7.5 PL20C-*C ø9
 Protection: IP65. (Mounting hole) (with conduit protection) ø4 ø4
 SL130 scales standard supplied with (36)
aluminum protection cover. 15

26.4 PL20C-* (38)
6.9 (without conduit protection)
1 35 (86.5) (17)
29.5 Cable length (91) (17.7)
(4)
59 8.2
63
28

12 Dimensions PL20C
7

Item No. Type Length/m Price EUR

Item No. Measuring range/mm Price EUR PL20 1 without conduit protection: 310.00
346.835 PL20C‑3 3 332.00
Digiruler SL130 scales: 145.00 346.836 PL20C‑5 5 430.00
146.00 346.837 PL20C‑10 10 529.00
345.920 200 147.00 346.838 PL20C‑15 15 590.00
147.00 346.839 PL20C‑20 20 788.00
345.921 300 159.00 346.840 PL20C‑30 30
179.00
345.922 400 193.00
233.00
345.923 500 272.00
321.00
345.924 600 365.00
402.00
345.925 700 587.00 PL20 1 with stainless steel conduit protection:
776.00
345.926 800 954.00 346.841 PL20C‑3C 3 362.00
1,122.00
345.928 1 000 1,303.00 346.842 PL20C‑5C 5 411.00
1,484.00
345.930 1 200 1,669.00 346.843 PL20C‑10C 10 640.00
1,843.00
345.933 1 500 3,760.00 346.844 PL20C‑15C 15 867.00
5,520.00
345.936 1 800
27.50
345.938 2 000 346.845 PL20C‑20C 20 1,055.00

345.948 3 000 346.867 Adapter cable CK‑T157 89.00

345.958 4 000

345.968 5 000 For connecting to old display types 2:

345.978 6 000 346.926 Adapter cable CE30 81.00

345.988 7 000 346.448 Adapter SZ51‑AB01 84.00

345.998 8 000

346.008 9 000 1 Cable unit consists of a reading head, a cable and a
connector.
346.018 10 000 2 LG10, LH51/52, LH61 and LY51/52.
Both adapter cable and adapter
346.028 20 000 are needed.

346.038 30 000

344.922 Aluminum cover
per meter, incl. bolts

Other lengths available on request.

LG20 LH70/71 LY71/72 LT30

MG20A-DK

SL130 + PL20C Adapter C01.209.EN.20241127
Configuration CK-T157

A/B phase
