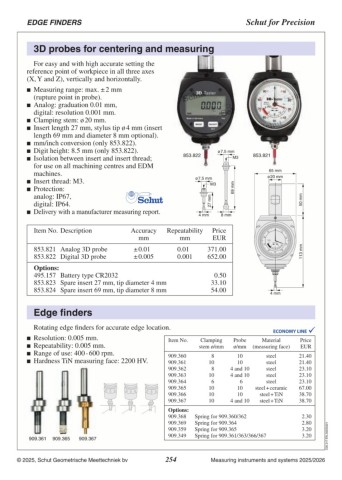

P. 254
EDGE FINDERS Schut for Precision
3D probes for centering and measuring
For easy and with high accurate setting the 853.822 ø7.5 mm 853.821
reference point of workpiece in all three axes M3 65 mm
(X, Y and Z), vertically and horizontally. ø20 mm
Measuring range: max. ± 2 mm ø7.5 mm
M3 4 mm
(rupture point in probe). 27 mm
Analog: graduation 0.01 mm, 69 mm 50 mm
digital: resolution 0.001 mm. 4 mm 8 mm
Clamping stem: ø 20 mm.
Insert length 27 mm, stylus tip ø 4 mm (insert
length 69 mm and diameter 8 mm optional).
mm/inch conversion (only 853.822).
Digit height: 8.5 mm (only 853.822).
Isolation between insert and insert thread;
for use on all machining centres and EDM
machines.
Insert thread: M3.
Protection:
analog: IP67,
digital: IP64.
Delivery with a manufacturer measuring report.
Item No. Description Accuracy Repeatability Price
mm mm EUR
853.821 Analog 3D probe ± 0.01 0.01 371.00 113 mm
853.822 Digital 3D probe ± 0.005 0.001 652.00
Options: 0.50
495.157 Battery type CR2032 33.10
853.823 Spare insert 27 mm, tip diameter 4 mm 54.00
853.824 Spare insert 69 mm, tip diameter 8 mm
Edge finders
Rotating edge finders for accurate edge location.
Resolution: 0.005 mm. Item No. Clamping Probe Material Price
Repeatability: 0.005 mm. stem ø/mm ø/mm (measuring face) EUR
Range of use: 400 - 600 rpm. 909.360
Hardness TiN measuring face: 2200 HV. 909.361 8 10 steel 21.40
909.362 10 10 steel 21.40
909.363 8 4 and 10 steel 23.10
909.364 10 4 and 10 steel 23.10
909.365 6 6 steel 23.10
909.366 10 10 steel + ceramic 67.00
909.367 10 10 steel + TiN 38.70
10 4 and 10 steel + TiN 38.70
909.361 909.365 909.367 Options: Spring for 909.360/362 2.30 C05.317.EN.20250321
909.368 Spring for 909.364 2.80
909.369 Spring for 909.365 3.20
909.359 Spring for 909.361/363/366/367 3.20
909.349
© 2025, Schut Geometrische Meettechniek bv 254 Measuring instruments and systems 2025/2026
