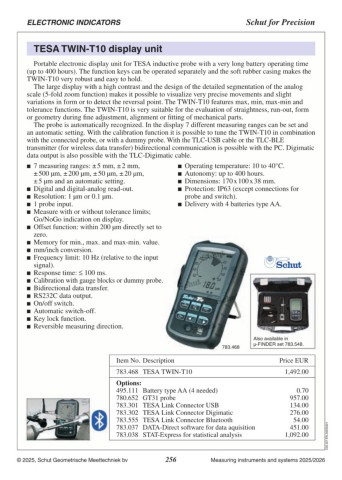

P. 256
ELECTRONIC INDICATORS Schut for Precision
TESA TWIN-T10 display unit
Portable electronic display unit for TESA inductive probe with a very long battery operating time
(up to 400 hours). The function keys can be operated separately and the soft rubber casing makes the
TWIN-T10 very robust and easy to hold.
The large display with a high contrast and the design of the detailed segmentation of the analog
scale (5-fold zoom function) makes it possible to visualize very precise movements and slight
variations in form or to detect the reversal point. The TWIN-T10 features max, min, max-min and
tolerance functions. The TWIN-T10 is very suitable for the evaluation of straightness, run-out, form
or geometry during fine adjustment, alignment or fitting of mechanical parts.
The probe is automatically recognized. In the display 7 different measuring ranges can be set and
an automatic setting. With the calibration function it is possible to tune the TWIN-T10 in combination
with the connected probe, or with a dummy probe. With the TLC-USB cable or the TLC-BLE
transmitter (for wireless data transfer) bidirectional communication is possible with the PC. Digimatic
data output is also possible with the TLC-Digimatic cable.
7 measuring ranges: ± 5 mm, ± 2 mm, Operating temperature: 10 to 40°C.
± 500 µm, ± 200 µm, ± 50 µm, ± 20 µm, Autonomy: up to 400 hours.
± 5 µm and an automatic setting. Dimensions: 170 x 100 x 38 mm.
Protection: IP63 (except connections for
Digital and digital-analog read-out.
Resolution: 1 µm or 0.1 µm. probe and switch).
1 probe input. Delivery with 4 batteries type AA.
Measure with or without tolerance limits;
Go/NoGo indication on display.
Offset function: within 200 µm directly set to
zero.
Memory for min., max. and max-min. value.
mm/inch conversion.
Frequency limit: 10 Hz (relative to the input
signal).
Response time: ≤ 100 ms.
Calibration with gauge blocks or dummy probe.
Bidirectional data transfer.
RS232C data output.
On/off switch.
Automatic switch-off.
Key lock function.
Reversible measuring direction.
783.468 Also available in
µ-FINDER set 783.548.
Item No. Description Price EUR C05.327.EN.20250321
783.468 TESA TWIN-T10 1,492.00
Options:
495.111 Battery type AA (4 needed) 0.70
780.652 GT31 probe 957.00
783.301 TESA Link Connector USB 134.00
783.302 TESA Link Connector Digimatic 276.00
783.555 TESA Link Connector Bluetooth 54.00
783.037 DATA-Direct software for data aquisition 451.00
783.038 STAT-Express for statistical analysis 1,092.00
© 2025, Schut Geometrische Meettechniek bv 256 Measuring instruments and systems 2025/2026
