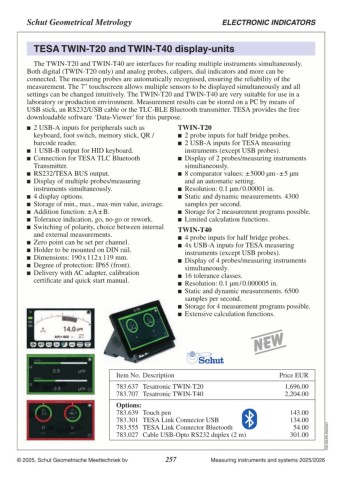

Schut Geometrical Metrology ELECTRONIC INDICATORS
TESA TWIN-T20 and TWIN-T40 display-units
The TWIN-T20 and TWIN-T40 are interfaces for reading multiple instruments simultaneously.
Both digital (TWIN-T20 only) and analog probes, calipers, dial indicators and more can be
connected. The measuring probes are automatically recognised, ensuring the reliability of the
measurement. The 7” touchscreen allows multiple sensors to be displayed simultaneously and all
settings can be changed intuitively. The TWIN-T20 and TWIN-T40 are very suitable for use in a
laboratory or production environment. Measurement results can be stored on a PC by means of
USB stick, an RS232/USB cable or the TLC-BLE Bluetooth transmitter. TESA provides the free
downloadable software ‘Data-Viewer’ for this purpose.
2 USB-A inputs for peripherals such as TWIN-T20
keyboard, foot switch, memory stick, QR / 2 probe inputs for half bridge probes.
barcode reader. 2 USB-A inputs for TESA measuring
1 USB-B output for HID keyboard. instruments (except USB probes).
Connection for TESA TLC Bluetooth Display of 2 probes/measuring instruments
Transmitter. simultaneously.
RS232/TESA BUS output. 8 comparator values: ± 5000 µm - ± 5 µm
Display of multiple probes/measuring
and an automatic setting.
instruments simultaneously. Resolution: 0.1 µm / 0.00001 in.
4 display options. Static and dynamic measurements. 4300
Storage of min., max., max-min value, average.
Addition function: ± A ± B. samples per second.
Tolerance indication, go, no-go or rework. Storage for 2 measurement programs possible.
Switching of polarity, choice between internal Limited calculation functions.
TWIN-T40
and external measurements. 4 probe inputs for half bridge probes.
Zero point can be set per channel. 4x USB-A inputs for TESA measuring
Holder to be mounted on DIN rail.
Dimensions: 190 x 112 x 119 mm. instruments (except USB probes).
Degree of protection: IP65 (front). Display of 4 probes/measuring instruments
Delivery with AC adapter, calibration
simultaneously.
certificate and quick start manual. 16 tolerance classes.
Resolution: 0.1 µm / 0.000005 in.
Static and dynamic measurements. 6500
samples per second.
Storage for 4 measurement programs possible.
Extensive calculation functions.
Item No. Description Price EUR C05.350.EN.20250321
783.637 Tesatronic TWIN-T20 1,696.00
783.707 Tesatronic TWIN-T40 2,204.00
Options:
783.639 Touch pen 143.00
783.301 TESA Link Connector USB 134.00
783.555 TESA Link Connector Bluetooth 54.00
783.027 Cable USB-Opto RS232 duplex (2 m) 301.00
