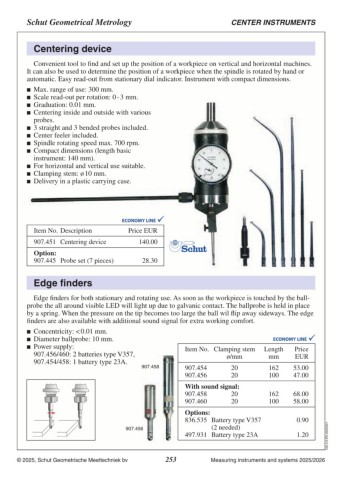

Schut Geometrical Metrology                                              CENTER INSTRUMENTS

  Centering device

  Convenient tool to find and set up the position of a workpiece on vertical and horizontal machines.
It can also be used to determine the position of a workpiece when the spindle is rotated by hand or
automatic. Easy read-out from stationary dial indicator. Instrument with compact dimensions.
	 Max. range of use: 300 mm.
	 Scale read-out per rotation: 0 - 3 mm.
	 Graduation: 0.01 mm.
	 Centering inside and outside with various

  probes.
	 3 straight and 3 bended probes included.
	 Center feeler included.
	 Spindle rotating speed max. 700 rpm.
	 Compact dimensions (length basic

  instrument: 140 mm).
	 For horizontal and vertical use suitable.
	 Clamping stem: ø 10 mm.
	 Delivery in a plastic carrying case.

Item No. Description                        Price EUR
907.451 Centering device                        140.00
Option:
907.445 Probe set (7 pieces)                      28.30

Edge finders

  Edge finders for both stationary and rotating use. As soon as the workpiece is touched by the ball­
probe the all around visible LED will light up due to galvanic contact. The ballprobe is held in place
by a spring. When the pressure on the tip becomes too large the ball wil flip away sideways. The edge
finders are also available with additional sound signal for extra working comfort.

	 Concentricity: < 0.01 mm.                                  Item No. Clamping stem 	 Length 	 Price
	 Diameter ballprobe: 10 mm.                                            ø/mm              mm EUR
	 Power supply: 	                          907.458

  907.456: 2 batteries type V357,
  907.454/458: 1 battery type 23A.

                                                              907.454 	  20       	 162    53.00
                                                              907.456 	  20       	 100    47.00

                                                              With sound signal:  	 162 68.00
                                                              907.458 	  20

                              907.456                         Options:                     0.90            C05.312.EN.20250605
                                                              836.535 Battery type V357 	  1.20

                                                                         (2 needed)
                                                              497.931 Battery type 23A
