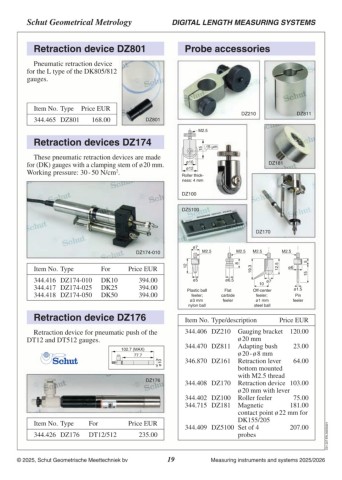

Schut Geometrical Metrology DIGITAL LENGTH MEASURING SYSTEMS

Retraction device DZ801 Probe accessories

Pneumatic retraction device
for the L type of the DK805/812
gauges.

Item No. Type Price EUR DZ210 DZ811
344.465 DZ801 162.00
DZ801

Retraction devices DZ174 ø10 M2.5 DZ181
12
These pneumatic retraction devices are made 15 5 µm
for (DK) gauges with a clamping stem of ø 20 mm.
Working pressure: 30 - 50 N/cm2. ø10
ø12
Roller thick-
ness: 4 mm

DZ100

DZ5100

DZ170

DZ174‑010 ø7 M2.5 M2.5 M2.5
M2.5

Item No. Type For Price EUR 8 ø6
344.416 DZ174‑010 DK10 381.00 19.3
344.417 DZ174‑025 DK25 381.00
344.418 DZ174‑050 DK50 381.00 12.5
15 5

ø5 ø6.5 10 ø7 ø1.5

Plastic ball Flat Off-center Pin
feeler; carbide feeler; feeler
ø3 mm feeler ø1 mm
steel ball
nylon ball

Retraction device DZ176 Item No. Type/description Price EUR

Retraction device for pneumatic push of the 344.406 DZ210 Gauging bracket 116.00
DT12 and DT512 gauges. ø 20 mm
344.470 DZ811 Adapting bush 22.00
102.7 (MAX) ø 20 - ø 8 mm
77.7 346.870 DZ161 Retraction lever 62.00

bottom mounted
with M2.5 thread
DZ176 344.408 DZ170 Retraction device 103.00

ø 20 mm with lever
344.402 DZ100 Roller feeler 73.00
344.715 DZ181 Magnetic 175.00
contact point ø 22 mm for
DK155/205
Item No. Type For Price EUR 344.409 DZ5100 Set of 4 200.00 C01.227.EN.20240625
344.426 DZ176 DT12/512 227.00 probes
