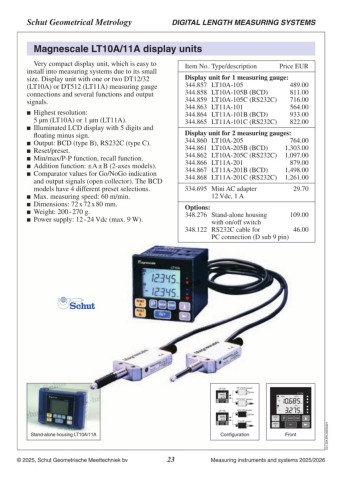

Schut Geometrical Metrology DIGITAL LENGTH MEASURING SYSTEMS

Magnescale LT10A/11A display units

Very compact display unit, which is easy to Item No. Type/description Price EUR
install into measuring systems due to its small
size. Display unit with one or two DT12/32 Display unit for 1 measuring gauge: 473.00
(LT10A) or DT512 (LT11A) measuring gauge 344.857 LT10A‑105
connections and several functions and output 344.858 LT10A‑105B (BCD) 784.00
signals. 344.859 LT10A‑105C (RS232C) 692.00
 Highest resolution: 344.863 LT11A‑101 545.00
344.864 LT11A‑101B (BCD) 902.00
5 µm (LT10A) or 1 µm (LT11A). 344.865 LT11A‑101C (RS232C) 795.00
 Illuminated LCD display with 5 digits and
Display unit for 2 measuring gauges:
floating minus sign. 344.860 LT10A‑205 739.00
 Output: BCD (type B), RS232C (type C). 344.861 LT10A‑205B (BCD) 1,260.00
 Reset/preset. 344.862 LT10A‑205C (RS232C) 1,061.00
 Min/max/P‑P function, recall function. 344.866 LT11A‑201 850.00
 Addition function: ± A ± B (2-axes models). 344.867 LT11A‑201B (BCD) 1,449.00
 Comparator values for Go/NoGo indication 344.868 LT11A‑201C (RS232C) 1,220.00

and output signals (open collector). The BCD 334.695 Mini AC adapter 29.00
models have 4 different preset selections. 12 Vdc, 1 A
 Max. measuring speed: 60 m/min.
 Dimensions: 72 x 72 x 80 mm. Options:
 Weight: 200 - 270 g. 348.276 Stand-alone housing 101.00
 Power supply: 12 - 24 Vdc (max. 9 W). with on/off switch

348.122 RS232C cable for 46.00
PC connection (D sub 9 pin)

LT10A DT12/32N gauges
DT12/32P gauges

LT11A DT512N gauges
DT512P gauges
C01.324.EN.20250106
Stand-alone housing LT10A/11A Configuration Front
© 2025, Schut Geometrische Meettechniek bv
23 Measuring instruments and systems 2023/2024
