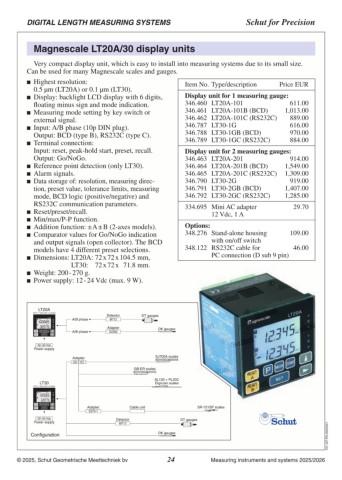

Page 24 - Schut Catalog

DIGITAL LENGTH MEASURING SYSTEMS Schut for Precision

Magnescale LT20A/30 display units

Very compact display unit, which is easy to install into measuring systems due to its small size.
Can be used for many Magnescale scales and gauges.

 Highest resolution: Item No. Type/description Price EUR
0.5 µm (LT20A) or 0.1 µm (LT30).
Display unit for 1 measuring gauge:
 Display: backlight LCD display with 6 digits, 346.460 LT20A-101 611.00
floating minus sign and mode indication. 346.461 LT20A-101B (BCD) 1,013.00
346.462 LT20A-101C (RS232C) 889.00
 Measuring mode setting by key switch or 346.787 LT30-1G 616.00
external signal. 346.788 LT30-1GB (BCD) 970.00
346.789 LT30-1GC (RS232C) 884.00
 Input: A/B phase (10p DIN plug).
Output: BCD (type B), RS232C (type C). Display unit for 2 measuring gauges:
346.463 LT20A-201 914.00
 Terminal connection: 346.464 LT20A-201B (BCD) 1,549.00
Input: reset, peak-hold start, preset, recall. 346.465 LT20A-201C (RS232C) 1,309.00
Output: Go/NoGo. 346.790 LT30-2G 919.00
346.791 LT30-2GB (BCD) 1,407.00
 Reference point detection (only LT30). 346.792 LT30-2GC (RS232C) 1,285.00
 Alarm signals.
 Data storage of: resolution, measuring direc- 334.695 Mini AC adapter 29.70
12 Vdc, 1 A
tion, preset value, tolerance limits, measuring
mode, BCD logic (positive/negative) and Options: 109.00
RS232C communication parameters. 348.276 Stand-alone housing
 Reset/preset/recall. with on/off switch
 Min/max/P-P function. 348.122 RS232C cable for 46.00
 Addition function: ± A ± B (2-axes models). PC connection (D sub 9 pin)
 Comparator values for Go/NoGo indication
and output signals (open collector). The BCD
models have 4 different preset selections.
 Dimensions: LT20A: 72 x 72 x 104.5 mm,
LT30: 72 x 72 x 71.8 mm.
 Weight: 200 - 270 g.
 Power supply: 12 - 24 Vdc (max. 9 W).

LT20A A/B phase Detector DT gauges
A/B phase MT12 DK gauges
(101 = 1 axis; 201 = 2 axes)
Adapter Adapter
12 - 24 Vdc CK-T157 DZ262
Power supply

LT30 SJ700A scales
GB-ER scales
(1G = 1 axis; 2G = 2 axes)
SL130 + PL20C
Digiruler scales

Adapter Cable unit SR-721SP scales
SZ70-1 DT gauges
Detector DK gauges
12 - 24 Vdc MT13 C01.327.EN.20250321
Power supply

Configuration
