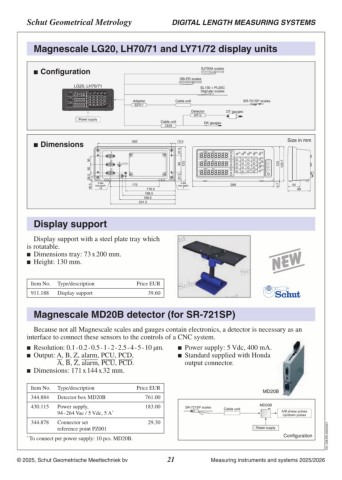

P. 21
Schut Geometrical Metrology DIGITAL LENGTH MEASURING SYSTEMS
Magnescale LG20, LH70/71 and LY71/72 display units
Configuration SJ700A scales
LG20, LH70/71 GB-ER scales
SL130 + PL20C
Power supply Digiruler scales
Dimensions Adapter Cable unit SR-721SP scales
SZ70-1
Detector DT gauges
262 MT13
Cable unit
CE29 DK gauges
13.5 Size in mm
18.5 28.5 30 30 123
31.5 60 31.5 123.7
123
2-M4 175 4-M4 289 0.7 44
max.depth: 176.5 max.depth: 80
18 188.5 7
198.5
231.5
Display support
Display support with a steel plate tray which
is rotatable.
Dimensions tray: 73 x 200 mm.
Height: 130 mm.
Item No. Type/description Price EUR
911.188 Display support 39.60
Magnescale MD20B detector (for SR‑721SP)
Because not all Magnescale scales and gauges contain electronics, a detector is necessary as an
interface to connect these sensors to the controls of a CNC system.
Resolution: 0.1 - 0.2 - 0.5 - 1 - 2 - 2.5 - 4 - 5 - 10 µm. Power supply: 5 Vdc, 400 mA.
Output: A, B, Z, alarm, PCU, PCD, Standard supplied with Honda
A, B, Z, alarm, PCU, PCD. output connector.
Dimensions: 171 x 144 x 32 mm.
Item No. Type/description Price EUR MD20B
344.884 Detector box MD20B 761.00
430.115 Power supply, 183.00 SR-721SP scales Cable unit MD20B
94 - 264 Vac / 5 Vdc, 5 A*
A/B phase pulses
Up/down pulses
344.878 Connector set 29.30 C01.338.EN.20250321
reference point PZ001
Power supply
* To connect per power supply: 10 pcs. MD20B. Configuration
