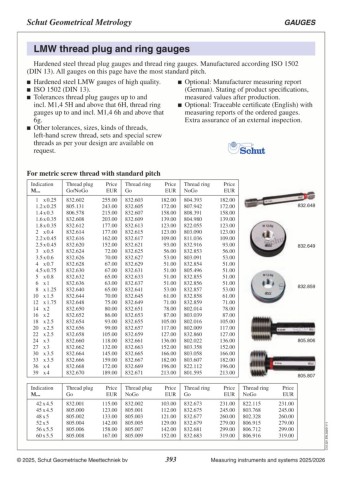

P. 393

Schut Geometrical Metrology                                                                         GAUGES

LMW thread plug and ring gauges

  Hardened steel thread plug gauges and thread ring gauges. Manufactured according ISO 1502
(DIN 13). All gauges on this page have the most standard pitch.

	 Hardened steel LMW gauges of high quality.                 	 Optional: Manufacturer measuring report
	 ISO 1502 (DIN 13).                                           (German). Stating of product specifications,
	 Tolerances thread plug gauges up to and                      measured values after pro­duction.

  incl. M1,4 5H and above that 6H, thread ring                	 Optional: Traceable certificate (English) with
  gauges up to and incl. M1,4 6h and above that                 mea­suring reports of the ordered gauges.
  6g.                                                           Extra assurance of an external inspection.
	 Other tolerances, sizes, kinds of threads,
  left-hand screw thread, sets and special screw
  threads as per your design are available on
  request.

For metric screw thread with standard pitch

Indication 	  Thread plug	    Price	  Thread ring	    Price	  Thread ring	    Price	                           832.648
M...          Go/NoGo	        EUR     Go	             EUR     NoGo	           EUR
                                                                                                               832.649
	 1	 x	0.25   832.602	      256.00    832.603	      182.00    804.393	      182.00
	 1.2	x	0.25  805.131	      244.00    832.605	      172.00    807.942	      172.00                             832.859
	 1.4	x	0.3   806.578	      216.00    832.607	      158.00    808.391	      158.00
	 1.6	x	0.35  832.608	      204.00    832.609	      139.00    804.980	      139.00                             805.806
	 1.8	x	0.35  832.612	      178.00    832.613	      123.00    822.055	      123.00
	 2	 x	0.4    832.614	      178.00    832.615	      123.00    803.090	      123.00                             805.807
	 2.2	x	0.45  832.616	      162.00    832.617	      109.00    811.036	      109.00                    Price
	 2.5	x	0.45  832.620	      153.00    832.621	       93.00    832.916	       93.00                    EUR
	 3	 x	0.5    832.624	       68.00    832.625	       57.00    832.853	       57.00                  221.00
	 3.5	x	0.6   832.626	       66.00    832.627	       53.00    803.091	       53.00                  234.00
	 4	 x	0.7    832.628	       64.00    832.629	       52.00    832.854	       52.00                  248.00
	 4.5	x	0.75  832.630	       64.00    832.631	       52.00    805.496	       52.00                  266.00
	 5	 x	0.8    832.632	       62.00    832.633	       52.00    832.855	       52.00                  285.00
	 6	 x	1      832.636	       60.00    832.637	       52.00    832.856	       52.00                  305.00
	 8	 x	1.25   832.640	       62.00    832.641	       53.00    832.857	       53.00
	 10	 x	1.5   832.644	       66.00    832.645	       62.00    832.858	       62.00
	 12	 x	1.75  832.648	       71.00    832.649	       72.00    832.859	       72.00
	 14	 x	2     832.650	       76.00    832.651	       79.00    802.014	       79.00
	 16	 x	2     832.652	       82.00    832.653	       88.00    803.039	       88.00
	 18	 x	2.5   832.654	       88.00    832.655	      100.00    802.016	      100.00
	 20	 x	2.5   832.656	       94.00    832.657	      111.00    802.009	      111.00
	 22	 x	2.5   832.658	      100.00    832.659	      121.00    832.860	      121.00
	 24	 x	3     832.660	      113.00    832.661	      130.00    802.022	      130.00
	 27	 x	3     832.662	      125.00    832.663	      145.00    803.358	      145.00
	 30	 x	3.5   832.664	      138.00    832.665	      159.00    803.058	      159.00
	 33	 x	3.5   832.666	      151.00    832.667	      174.00    803.607	      174.00
	 36	 x	4     832.668	      163.00    832.669	      187.00    822.112	      187.00
	 39	 x	4     832.670	      180.00    832.671	      203.00    801.595	      203.00

Indication 	  Thread plug	    Price	  Thread plug	    Price	  Thread ring	    Price	  Thread ring	                      C12.321.EN.20250605
M...          Go	             EUR     NoGo	           EUR     Go	             EUR     NoGo

	 42	x	4.5    832.001	      109.00    832.002	       98.00    832.673	      221.00    822.115
	 45	x	4.5    805.000	      117.00    805.001	      106.00    832.675	      234.00    803.768
	 48	x	5      805.002	      126.00    805.003	      115.00    832.677	      248.00    802.328
	 52	x	5      805.004	      123.00    805.005	      123.00    832.679	      266.00    806.915
	 56	x	5.5    805.006	      150.00    805.007	      135.00    832.681	      285.00    806.712
	 60	x	5.5    805.008	      159.00    805.009	      144.00    832.683	      305.00    806.916

© 2025, Schut Geometrische Meettechniek bv          393       Measuring instruments and systems 2025/2026
