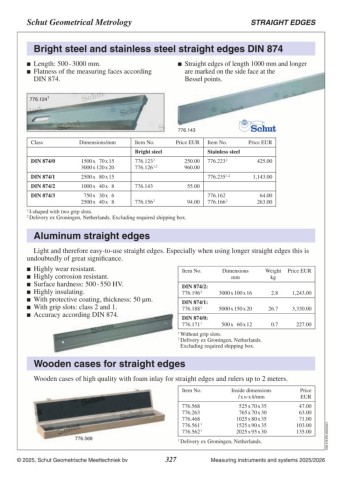

P. 327

Schut Geometrical Metrology                                                                     STRAIGHT EDGES

Bright steel and stainless steel straight edges DIN 874

	 Length: 500 - 3000 mm.                                      	 Straight edges of length 1000 mm and longer
	 Flatness of the measuring faces according                     are marked on the side face at the
                                                                 Bessel points.
  DIN 874.

776.1241

                                                               776.143

Class                Dimensions/mm          Item No.      Price EUR            Item No.         Price EUR
                                                                               Stainless steel
                                            Bright steel                       776.223 2            425.00
                                                                                                  1,143.00
DIN 874/0 	          1500	x	 70	x	15        776.123 2          250.00          776.235 1,2
                  	  3000	x	120	x	20        776.126 1,2        960.00                                 64.00
                                                                               776.162              263.00
DIN 874/1 	          2500	x	 80	x	15                                           776.166 2

DIN 874/2 	          1000	x	 40	x	 8        776.143                     55.00

DIN 874/3 	           750	x	 30	x	 6        776.156 2                   94.00
                  	  2500	x	 40	x	 8

1	I-shaped with two grip slots.
2	Delivery ex Groningen, Netherlands. Excluding required shipping box.

Aluminum straight edges

  Light and therefore easy-to-use straight edges. Especially when using longer straight edges this is
undoubtedly of great significance.

	 Highly wear resistant.                                      Item No.            Dimensions 	         Weight 	 Price EUR
	 Highly corrosion resistant.                                                          mm                kg
	 Surface hardness: 500 - 550 HV.                             DIN 874/2:
	 Highly insulating.                                          776.196 2 	        3000	x	100	x	16  	 2.8     1,243.00
	 With protective coating, thickness: 50 µm.                  DIN 874/1:
	 With grip slots: class 2 and 1.                             776.188 2 	        5000	x	150	x	20  	 26.7    3,330.00
	 Accuracy according DIN 874.                                 DIN 874/0:
                                                               776.171 1 	         500	x	 60	x	12
                                                                                                   	 0.7     227.00

                                                               1	Without grip slots.
                                                               2	Delivery ex Groningen, Netherlands.
                                                                Excluding required shipping box.

Wooden cases for straight edges

Wooden cases of high quality with foam inlay for straight edges and rulers up to 2 meters.

                                                               Item No.           Inside dimensions 	          Price
                                                                                     l x w x h/mm              EUR

                                                               776.568         	   525	x	70	x	35              47.00            C09.316.EN.20250321
                                                               776.263         	   765	x	70	x	30              63.00
                                                               776.468         	  1025	x	80	x	35              71.00
                                                               776.561 1       	  1525	x	90	x	35             103.00
                                                               776.562 1       	  2025	x	95	x	30             135.00

                     776.568                                   1	Delivery ex Groningen, Netherlands.

© 2025, Schut Geometrische Meettechniek bv                327                     Measuring instruments and systems 2025/2026
