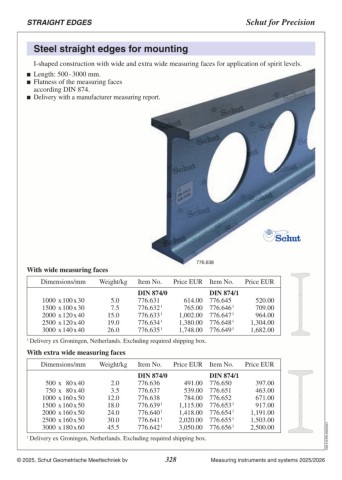

P. 328

STRAIGHT EDGES                                                                        Schut for Precision

  Steel straight edges for mounting

  I‑shaped construction with wide and extra wide measuring faces for application of spirit levels.
	 Length: 500 - 3000 mm.
	 Flatness of the measuring faces

  according DIN 874.
	 Delivery with a manufacturer measuring report.

                                                          776.638

With wide measuring faces

Dimensions/mm Weight/kg 	Item No.	 Price EUR I	tem No.	 Price EUR

	                   	                       D	 IN 874/0     614.00      D	 IN 874/1     520.00
	 1000	 x	100	x	30  	   5.0                 	776.631	       765.00      	776.645	       709.00
	 1500	 x	100	x	30  	   7.5                 7	 76.632 1	  1,002.00      7	 76.646 1	    964.00
	 2000	 x	120	x	40  	  15.0                 7	 76.633 1	  1,380.00      7	 76.647 1	  1,304.00
	 2500	 x	120	x	40  	  19.0                 	776.634 1	   1,748.00      7	 76.648 1	  1,682.00
	 3000	 x	140	x	40  	  26.0                 	776.635 1	                 	776.649 1

1	Delivery ex Groningen, Netherlands. Excluding required shipping box.

With extra wide measuring faces

Dimensions/mm Weight/kg I	tem No.	 Price EUR 	Item No.	 Price EUR

	                   	                       D	 IN 874/0     491.00      	DIN 874/1      397.00                       C09.310.EN.20250321
	 500	 x	 80	x	40   	   2.0                 7	 76.636	      539.00      7	 76.650	      463.00
	 750	 x	 80	x	40   	   3.5                 7	 76.637	      784.00      	776.651	       671.00
	 1000	 x	160	x	50  	  12.0                 7	 76.638	    1,115.00      	776.652	       917.00
	 1500	 x	160	x	50  	  18.0                 7	 76.639 1	  1,418.00      	776.653 1	   1,191.00
	 2000	 x	160	x	50  	  24.0                 7	 76.640 1	  2,020.00      7	 76.654 1	  1,503.00
	 2500	 x	160	x	50  	  30.0                 7	 76.641 1	  3,050.00      	776.655 1	   2,500.00
	 3000	 x	180	x	60  	  45.5                 7	 76.642 1	                	776.656 1

1	Delivery ex Groningen, Netherlands. Excluding required shipping box.
