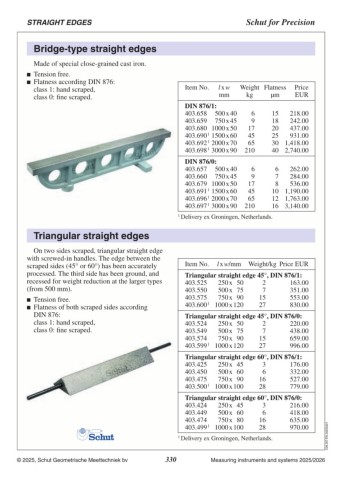

P. 330
STRAIGHT EDGES Schut for Precision
Bridge-type straight edges
These bridge-type straight edges are made of high-quality cast iron and are stable thanks to
reinforcement ribs that prevent bending and expansion. Highly suitable for aligning narrow guides
and surfaces.
Tension free. Item No. l x w Weight Flatness Price
Flatness according DIN 876: mm kg µm EUR
class 1: hand scraped, DIN 876/1:
class 0: fine scraped. 403.658 500 x 40 6 15 218.00
403.659 750 x 45 9 18 242.00
403.680 1000 x 50 17 20 437.00
403.690 1 1500 x 60 45 25 931.00
403.692 1 2000 x 70 65 30 1,418.00
403.698 1 3000 x 90 210 40 2,740.00
DIN 876/0:
403.657 500 x 40 6 6 262.00
403.660 750 x 45 9 7 284.00
403.679 1000 x 50 17 8 536.00
403.691 1 1500 x 60 45 10 1,190.00
403.696 1 2000 x 70 65 12 1,763.00
403.697 1 3000 x 90 210 16 3,140.00
1 Delivery ex Groningen, Netherlands.
Triangular straight edges Item No. l x w/mm Weight/kg Price EUR
On two sides scraped, triangular straight edge Triangular straight edge 45°, DIN 876/1:
with screwed-in handles. The edge between the 403.525 250 x 50 2 163.00
scraped sides (45° or 60°) has been accurately 403.550 500 x 75 7 351.00
processed. The third side has been ground, and 403.575 750 x 90 15 553.00
recessed for weight reduction at the larger types 403.600 1 1000 x 120 27 830.00
(from 500 mm).
Tension free. Triangular straight edge 45°, DIN 876/0:
Flatness of both scraped sides according 403.524 250 x 50 2 220.00
403.549 500 x 75 7 438.00
DIN 876:
class 1: hand scraped,
class 0: fine scraped.
403.574 750 x 90 15 659.00
403.599 1 1000 x 120 27 996.00
Triangular straight edge 60°, DIN 876/1:
403.425 250 x 45 3 176.00
403.450 500 x 60 6 332.00
403.475 750 x 90 16 527.00
403.500 1 1000 x 100 28 779.00
Triangular straight edge 60°, DIN 876/0:
403.424 250 x 45 3 216.00
403.449 500 x 60 6 418.00
403.474 750 x 80 16 635.00
403.499 1 1000 x 100 28 970.00 C09.207.EN.20251216
1 Delivery ex Groningen, Netherlands.
