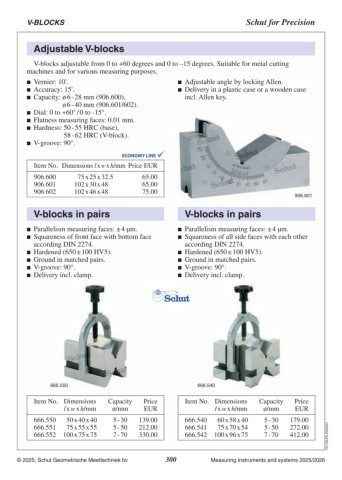

V-BLOCKS Schut for Precision

Adjustable V‑blocks

V‑blocks adjustable from 0 to +60 degrees and 0 to –15 degrees. Suitable for metal cutting
machines and for various measuring purposes.

 Vernier: 10'.  Adjustable angle by locking Allen.
 Accuracy: 15'.  Delivery in a plastic case or a wooden case
 Capacity: ø 6 - 28 mm (906.600),
incl. Allen key.
ø 6 - 40 mm (906.601/602).
 Dial: 0 to +60° / 0 to -15°.
 Flatness measuring faces: 0.01 mm.
 Hardness: 50 - 55 HRC (base),

58 - 62 HRC (V-block).
 V‑groove: 90°.

Item No. Dimensions l x w x h/mm Price EUR

906.600 75 x 25 x 32.5 57.00 906.601
906.601 102 x 30 x 48 57.00
906.602 102 x 46 x 48 66.00 V‑blocks in pairs

V‑blocks in pairs  Parallelism measuring faces: ± 4 µm.
 Squareness of all side faces with each other
 Parallelism measuring faces: ± 4 µm.
 Squareness of front face with bottom face according DIN 2274.
 Hardened (650 ± 100 HV5).
according DIN 2274.  Ground in matched pairs.
 Hardened (650 ± 100 HV5).  V‑groove: 90°.
 Ground in matched pairs.  Delivery incl. clamp.
 V‑groove: 90°.
 Delivery incl. clamp.

666.550 666.540

Item No. Dimensions Capacity Price Item No. Dimensions Capacity Price
l x w x h/mm ø/mm EUR l x w x h/mm ø/mm EUR

666.550 50 x 40 x 40 5 - 30 139.00 666.540 60 x 58 x 40 5 - 30 179.00 C07.203.EN.20240626
666.551 75 x 55 x 55 5 - 50 212.00 666.541 75 x 70 x 54 5 - 50 272.00
666.552 100 x 75 x 75 7 - 70 330.00 666.542 100 x 96 x 75 7 - 70 412.00
