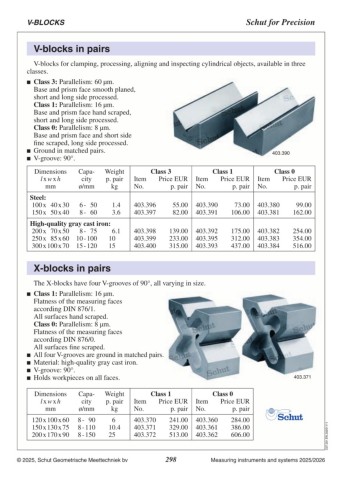

V-BLOCKS Schut for Precision

V‑blocks in pairs

V‑blocks for clamping, processing, aligning and inspecting cylindrical objects, available in three
classes.

 Class 3: Parallelism: 60 µm. 403.390
Base and prism face smooth planed,
short and long side processed.
Class 1: Parallelism: 16 µm.
Base and prism face hand scraped,
short and long side processed.
Class 0: Parallelism: 8 µm.
Base and prism face and short side
fine scraped, long side processed.

 Ground in matched pairs.
 V‑groove: 90°.

Dimensions Capa- Weight Class 3 Class 1 Class 0
l x w x h city p. pair Item Price EUR Item Price EUR Item Price EUR
mm ø/mm kg No. p. pair No. p. pair No. p. pair

Steel: 53.00 70.00 96.00
100 x 40 x 30 6 - 50 1.4 403.396 80.00 403.390 103.00 403.380 157.00
150 x 50 x 40 8 - 60 3.6 403.397 403.391 403.381

High-quality gray cast iron: 135.00 170.00 247.00
200 x 70 x 50 8 - 75 6.1 403.398 226.00 403.392 303.00 403.382 344.00
250 x 85 x 60 10 - 100 10 403.399 306.00 403.395 424.00 403.383 501.00
300 x 100 x 70 15 - 120 15 403.400 403.393 403.384

X‑blocks in pairs

The X‑blocks have four V‑grooves of 90°, all varying in size. 403.371
 Class 1: Parallelism: 16 µm.

Flatness of the measuring faces
according DIN 876/1.
All surfaces hand scraped.
Class 0: Parallelism: 8 µm.
Flatness of the measuring faces
according DIN 876/0.
All surfaces fine scraped.
 All four V‑grooves are ground in matched pairs.
 Material: high-quality gray cast iron.
 V‑groove: 90°.
 Holds workpieces on all faces.

Dimensions Capa- Weight Class 1 Class 0
l x w x h city p. pair Item Price EUR Item Price EUR
mm ø/mm kg No. p. pair No. p. pair

120 x 100 x 60 8 - 90 6 403.370 234.00 403.360 276.00 C07.201.EN.20240626
150 x 130 x 75 8 - 110 10.4 403.371 319.00 403.361 375.00
200 x 170 x 90 8 - 150 25 403.372 498.00 403.362 589.00
