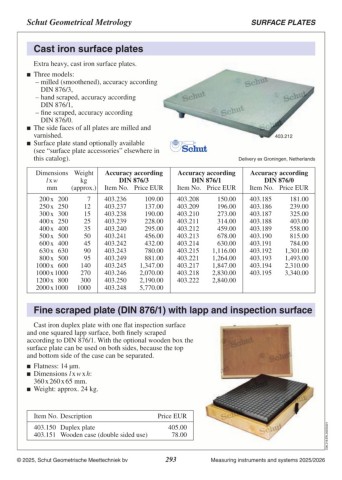

Schut Geometrical Metrology                                                     SURFACE PLATES

Cast iron surface plates

  Extra heavy, cast iron surface plates.                                                  403.212
	 Three models:
                                                                                Delivery ex Groningen, Netherlands
   – milled (smoothened), accuracy according
  	 DIN 876/3,
   –	hand scraped, accuracy according
  	 DIN 876/1,
   –	fine scraped, accuracy according
  	 DIN 876/0.
	 The side faces of all plates are milled and
  varnished.
	 Surface plate stand optionally available
  (see “surface plate accessories” elsewhere in
  this catalog).

Dimensions 	 Weight 	  Accuracy according                  Accuracy according   Accuracy according
l x w 	  kg 	                DIN 876/3                           DIN 876/1            DIN 876/0
mm (approx.)
                       Item No.	 Price EUR                 Item No.	 Price EUR  Item No.	 Price EUR

	 200	x	 200 	 7       403.236	               109.00       403.208	    150.00   403.185	    181.00
	 250	x	 250 	 12      403.237	               137.00       403.209	    196.00   403.186	    239.00
	 300	x	 300 	 15      403.238	               190.00       403.210	    273.00   403.187	    325.00
	 400	x	 250 	 25      403.239	               228.00       403.211	    314.00   403.188	    403.00
	 400	x	 400 	 35      403.240	               295.00       403.212	    459.00   403.189	    558.00
	 500	x	 500 	 50      403.241	               456.00       403.213	    678.00   403.190	    815.00
	 600	x	 400 	 45      403.242	               432.00       403.214	    630.00   403.191	    784.00
	 630	x	 630 	 90      403.243	               780.00       403.215	  1,116.00   403.192	  1,301.00
	 800	x	 500 	 95      403.249	               881.00       403.221	  1,264.00   403.193	  1,493.00
	1000	x	 600 	 140     403.245	             1,347.00       403.217	  1,847.00   403.194	  2,310.00
	1000	x	1000 	 270     403.246	             2,070.00       403.218	  2,830.00   403.195	  3,340.00
	1200	x	 800 	 300     403.250	             2,190.00       403.222	  2,840.00
	2000	x	1000 	 1000    403.248	             5,770.00

  Fine scraped plate (DIN 876/1) with lapp and inspection surface

  Cast iron duplex plate with one flat inspection surface
and one squared lapp surface, both finely scraped
according to DIN 876/1. With the optional wooden box the
surface plate can be used on both sides, because the top
and bottom side of the case can be separated.
	 Flatness: 14 µm.
	 Dimensions l x w x h:

  360 x 260 x 65 mm.
	 Weight: approx. 24 kg.

Item No. Description                        Price EUR                                                               C06.218.EN.20250321
403.150 Duplex plate                            405.00
403.151 Wooden case (double sided use)            78.00
