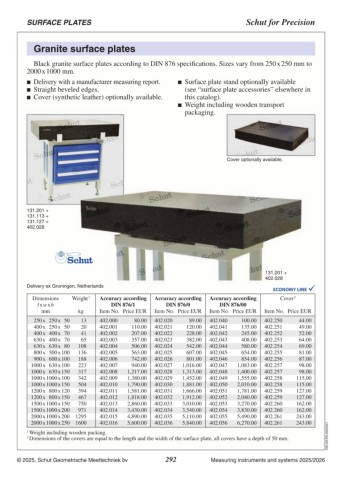

SURFACE PLATES                                                                    Schut for Precision

Granite surface plates

  Black granite surface plates according to DIN 876 specifications. Sizes vary from 250 x 250 mm to
2000 x 1000 mm.

	 Delivery with a manufacturer measuring report.            	 Surface plate stand optionally available
	 Straight beveled edges.                                     (see “surface plate accessories” elsewhere in
	 Cover (synthetic leather) optionally available.             this catalog).

                                                             	 Weight including wooden transport
                                                               packaging.

                                                                        Cover optionally available.

131.201 +
131.113 +
131.127 +
402.028

                                                                                             131.201 +
                                                                                             402.028

Delivery ex Groningen, Netherlands

	Dimensions	  Weight 1        Accuracy according   Accuracy according   Accuracy according           Cover 2
	 l x w x h      kg                 DIN 876/1            DIN 876/0           DIN 876/00      Item No.	 Price EUR
	 mm
                              Item No.	 Price EUR  Item No.	 Price EUR  Item No.	 Price EUR

	  250 x   250 x   50	    13  402.000	     80.00   402.020	     89.00   402.040	    100.00   402.250	                      44.00  C06.325.EN.20250321
 	 400 x   250 x   50	    20  402.001	    110.00   402.021	    120.00   402.041	    135.00   402.251	                      49.00
	  400 x   400 x   70	    41  402.002	    207.00   402.022	    228.00   402.042	    245.00   402.252	                      52.00
	  630 x   400 x   70	    65  402.003	    357.00   402.023	    382.00   402.043	    408.00   402.253	                      64.00
 	 630 x   630 x   80	   108  402.004	    506.00   402.024	    542.00   402.044	    580.00   402.254	                      69.00
 	 800 x   500 x 100	   136   402.005	    563.00   402.025	    607.00   402.045	    654.00   402.255	                      81.00
 	 900 x   600 x 100	   188   402.006	    742.00   402.026	    801.00   402.046	    854.00   402.256	                      87.00
	1000 x   630 x 100	   223    402.007	    940.00   402.027	  1,016.00   402.047	  1,083.00   402.257	                      98.00
	1000 x   630 x 150	   317    402.008	  1,217.00   402.028	  1,313.00   402.048	  1,400.00   402.257	                      98.00
	1000 x 1000 x 100	   342     402.009	  1,380.00   402.029	  1,452.00   402.049	  1,555.00   402.258	                     115.00
	1000 x 1000 x 150	   504     402.010	  1,790.00   402.030	  1,881.00   402.050	  2,010.00   402.258	                     115.00
	1200 x   800 x 120	   394    402.011	  1,581.00   402.031	  1,666.00   402.051	  1,781.00   402.259	                     127.00
1	 200 x   800 x 150	   467   402.012	  1,818.00   402.032	  1,912.00   402.052	  2,040.00   402.259	                     127.00
	1500 x 1000 x 150	   750     402.013	  2,860.00   402.033	  3,010.00   402.053	  3,270.00   402.260	                     162.00
	1500 x 1000 x 200	   971     402.014	  3,430.00   402.034	  3,540.00   402.054	  3,830.00   402.260	                     162.00
	2000 x 1000 x 200	 1295      402.015	  4,890.00   402.035	  5,110.00   402.055	  5,490.00   402.261	                     243.00
2	 000 x 1000 x 250	 1600     402.016	  5,600.00   402.036	  5,840.00   402.056	  6,270.00   402.261	                     243.00

1	Weight including wooden packing.
2	Dimensions of the covers are equal to the length and the width of the surface plate, all covers have a depth of 50 mm.
