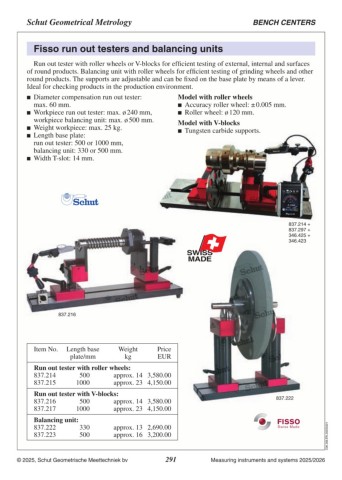

Schut Geometrical Metrology BENCH CENTERS
Fisso run out testers and balancing units
Run out tester with roller wheels or V‑blocks for efficient testing of external, internal and surfaces
of round products. Balancing unit with roller wheels for efficient testing of grinding wheels and other
round products. The supports are adjustable and can be fixed on the base plate by means of a lever.
Ideal for checking products in the production environment.
Diameter compensation run out tester: Model with roller wheels
max. 60 mm. Accuracy roller wheel: ± 0.005 mm.
Roller wheel: ø 120 mm.
Workpiece run out tester: max. ø 240 mm, Model with V‑blocks
workpiece balancing unit: max. ø 500 mm. Tungsten carbide supports.
Weight workpiece: max. 25 kg.
Length base plate:
run out tester: 500 or 1000 mm,
balancing unit: 330 or 500 mm.
Width T‑slot: 14 mm.
837.214 +
837.297 +
346.425 +
346.423
837.216
Item No. Length base Weight Price
plate/mm kg EUR
Run out tester with roller wheels:
837.214 500 approx. 14 3,580.00
837.215 1000 approx. 23 4,150.00
Run out tester with V‑blocks: 837.222
837.216 500 approx. 14 3,580.00 Measuring instruments and systems 2023/2024
837.217 1000 approx. 23 4,150.00
Balancing unit: C06.306.EN.20240626
837.222 330 approx. 13 2,690.00
837.223 500 approx. 16 3,200.00
