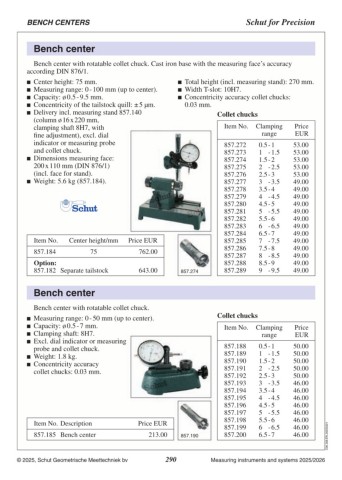

P. 290
BENCH CENTERS Schut for Precision
Bench center
Bench center with rotatable collet chuck. Cast iron base with the measuring face’s accuracy
according DIN 876/1.
Center height: 75 mm. Total height (incl. measuring stand): 270 mm.
Measuring range: 0 - 100 mm (up to center). Width T‑slot: 10H7.
Capacity: ø 0.5 - 9.5 mm. Concentricity accuracy collet chucks:
Concentricity of the tailstock quill: ± 5 µm.
Delivery incl. measuring stand 857.140 0.03 mm.
Collet chucks
(column ø 16 x 220 mm,
clamping shaft 8H7, with Item No. Clamping Price
fine adjustment), excl. dial range EUR
indicator or measuring probe
and collet chuck. 857.272 0.5 - 1 53.00
Dimensions measuring face: 857.273 1 - 1.5 53.00
200 x 110 mm (DIN 876/1) 857.274 1.5 - 2 53.00
(incl. face for stand). 857.275 2 - 2.5 53.00
Weight: 5.6 kg (857.184). 857.276 2.5 - 3 53.00
857.277 3 - 3.5 49.00
Item No. Center height/mm Price EUR 857.278 3.5 - 4 49.00
762.00 857.279 4 - 4.5 49.00
857.184 75 857.280 4.5 - 5 49.00
643.00 857.281 5 - 5.5 49.00
Option: 857.274 857.282 5.5 - 6 49.00
857.182 Separate tailstock 857.283 6 - 6.5 49.00
857.284 6.5 - 7 49.00
857.285 7 - 7.5 49.00
857.286 7.5 - 8 49.00
857.287 8 - 8.5 49.00
857.288 8.5 - 9 49.00
857.289 9 - 9.5 49.00
Bench center Collet chucks
Bench center with rotatable collet chuck. Item No. Clamping Price
Measuring range: 0 - 50 mm (up to center). range EUR
Capacity: ø 0.5 - 7 mm. 50.00
Clamping shaft: 8H7. 857.188 0.5 - 1 50.00
Excl. dial indicator or measuring 857.189 1 - 1.5 50.00
857.190 1.5 - 2 50.00
probe and collet chuck. 857.191 2 - 2.5 50.00
Weight: 1.8 kg. 857.192 2.5 - 3 46.00
Concentricity accuracy 857.193 3 - 3.5 46.00
857.194 3.5 - 4 46.00
collet chucks: 0.03 mm. 857.195 4 - 4.5 46.00
857.196 4.5 - 5 46.00
Item No. Description Price EUR 857.190 857.197 5 - 5.5 46.00 C06.308.EN.20240626
857.185 Bench center 213.00 857.198 5.5 - 6 46.00
857.199 6 - 6.5 46.00
857.200 6.5 - 7
