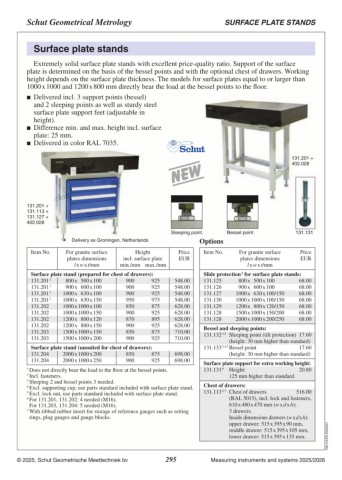

Schut Geometrical Metrology                                                              SURFACE PLATE STANDS

  Surface plate stands

  Extremely solid surface plate stands with excellent price-quality ratio. Support of the surface
plate is determined on the basis of the bessel points and with the optional chest of drawers. Working
height depends on the surface plate thickness. The models for surface plates equal to or larger than
1000 x 1000 and 1200 x 800 mm directly bear the load at the bessel points to the floor.
	 Delivered incl. 3 support points (bessel)

  and 2 sleeping points as well as sturdy steel
  surface plate support feet (adjustable in
  height).
	 Difference min. and max. height incl. surface
  plate: 25 mm.
	 Delivered in color RAL 7035.

                                                                                                                                                                     131.201 +
                                                                                                                                                                     402.028

131.201 +
131.113 +
131.127 +
402.028

                                                       Sleeping point.                   Bessel point.                 131.131

           Delivery ex Groningen, Netherlands                                  Options

Item No.   For granite surface 	            Height 	        Price              Item No.  For granite surface 	            Price
                                                            EUR                          plates dimensions 	              EUR
           plates dimensions 	    incl. surface plate
                                                                                             l x w x t/mm
           l x w x t/mm           	 min./mm	 max./mm

Surface plate stand (prepared for chest of drawers):                           Slide protection 2 for surface plate stands:

131.201 1 	 800	x	 500	x	100     	 	 900	      925     548.00                  131.125 	 800	x	 500	x	100     	 68.00
                                                       548.00
131.201 1 	 900	x	 600	x	100     	 	 900	      925     548.00                  131.126 	 900	x	 600	x	100     	 68.00
                                                       548.00
131.201 1 	 1000	x	 630	x	100     	 	 900	     925     628.00                  131.127 	 1000	x	 630	x	100/150            68.00
                                                       628.00
131.201 1 	 1000	x	 630	x	150     	 	 950	     975     628.00                  131.130 	 1000	x	1000	x	100/150            68.00
                                                       628.00
131.202 	 1000	x	1000	x	100     	 	 850	       875     710.00                  131.129 	 1200	x	 800	x	120/150            68.00
                                                       710.00
131.202 	 1000	x	1000	x	150     	 	 900	       925                             131.128 	 1500	x	1000	x	150/200            68.00

131.202 	 1200	x	 800	x	120     	 	 870	       895                             131.128 	 2000	x	1000	x	200/250            68.00

131.202 	 1200	x	 800	x	150     	 	 900	       925                             Bessel and sleeping points:

131.203 	 1500	x	1000	x	150     	 	 850	       875                             131.132 3,5 Sleeping point (tilt protection) 	17.60

131.203 	 1500	x	1000	x	200     	 	 900	       925                                       (height: 30 mm higher than standard)

Surface plate stand (unsuited for chest of drawers):                           131.133 3,4,5 Bessel point 	               17.60

131.204 	 2000	x	1000	x	200     	 	 850	       875     698.00                            (height: 30 mm higher than standard)
                                                       698.00
131.204 	 2000	x	1000	x	250     	 	 900	       925                             Surface plate support for extra working height:

1	Does not directly bear the load to the floor at the bessel points.           131.131 6 Height: 	                        20.80
2	Incl. fasteners.
3	Sleeping 2 and bessel points 3 needed.                                                 125 mm higher than standard.
4	Excl. supporting cup, use parts standard included with surface plate stand.
5	Excl. lock nut, use parts standard included with surface plate stand.        Chest of drawers:
6	For 131.201, 131.202: 4 needed (M16).
 For 131.203, 131.204: 5 needed (M16).                                         131.113 2,7 Chest of drawers            516.00
7	With ribbed rubber insert for storage of reference gauges such as setting
 rings, plug gauges and gauge blocks.                                                    (RAL 5015), incl. lock and fasteners,

                                                                                         610 x 480 x 470 mm (w x d x h);

                                                                                         3 drawers.

                                                                                         Inside dimensions drawers (w x d x h):

                                                                                         upper drawer: 515 x 395 x 90 mm,                                                       C06.319.EN.20250321

                                                                                         middle drawer: 515 x 395 x 105 mm,

                                                                                         lower drawer: 515 x 395 x 135 mm.

© 2025, Schut Geometrische Meettechniek bv             295                     Measuring instruments and systems 2025/2026
