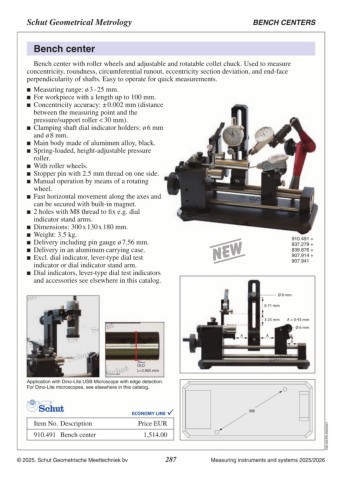

Schut Geometrical Metrology BENCH CENTERS
Bench center
Bench center with roller wheels and adjustable and rotatable collet chuck. Used to measure
concentricity, roundness, circumferential runout, eccentricity section deviation, and end-face
perpendicularity of shafts. Easy to operate for quick measurements.
Measuring range: ø 3 - 25 mm. 910.491 +
For workpiece with a length up to 100 mm. 837.279 +
Concentricity accuracy: ± 0.002 mm (distance 839.876 +
907.914 +
between the measuring point and the 907.941
pressure/support roller < 30 mm).
Clamping shaft dial indicator holders: ø 6 mm
and ø 8 mm.
Main body made of aluminum alloy, black.
Spring-loaded, height-adjustable pressure
roller.
With roller wheels.
Stopper pin with 2.5 mm thread on one side.
Manual operation by means of a rotating
wheel.
Fast horizontal movement along the axes and
can be secured with built-in magnet.
2 holes with M8 thread to fix e.g. dial
indicator stand arms.
Dimensions: 300 x 130 x 180 mm.
Weight: 3.5 kg.
Delivery including pin gauge ø 7.56 mm.
Delivery in an aluminum carrying case.
Excl. dial indicator, lever-type dial test
indicator or dial indicator stand arm.
Dial indicators, lever-type dial test indicators
and accessories see elsewhere in this catalog.
Ø 8 mm
0-71 mm
3-25 mm A = 0-93 mm
Ø 6 mm
AA
A
DLO
L=2.965 mm
Application with Dino-Lite USB Microscope with edge detection.
For Dino-Lite microscopes, see elsewhere in this catalog.
Item No. Description Price EUR M8 C06.320.EN.20250321
910.491 Bench center 1,514.00
