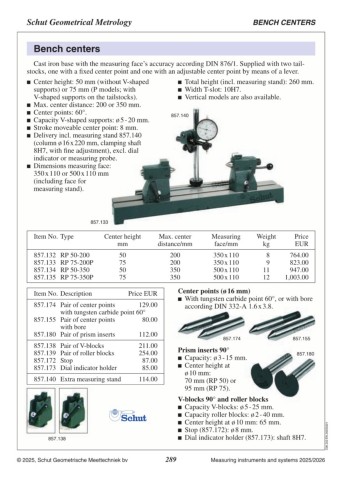

Schut Geometrical Metrology BENCH CENTERS
Bench centers
Cast iron base with the measuring face’s accuracy according DIN 876/1. Supplied with two tail
stocks, one with a fixed center point and one with an adjustable center point by means of a lever.
Center height: 50 mm (without V‑shaped Total height (incl. measuring stand): 260 mm.
supports) or 75 mm (P models; with Width T‑slot: 10H7.
V‑shaped supports on the tailstocks). Vertical models are also available.
Max. center distance: 200 or 350 mm. 857.140
Center points: 60°.
Capacity V‑shaped supports: ø 5 - 20 mm.
Stroke moveable center point: 8 mm.
Delivery incl. measuring stand 857.140
(column ø 16 x 220 mm, clamping shaft
8H7, with fine adjustment), excl. dial
indicator or measuring probe.
Dimensions measuring face:
350 x 110 or 500 x 110 mm
(including face for
measuring stand).
857.133
Item No. Type Center height Max. center Measuring Weight Price
mm distance/mm face/mm kg EUR
857.132 RP 50‑200 50 200 350 x 110 8 764.00
857.133 RP 75‑200P 75 200 350 x 110 9 823.00
857.134 RP 50‑350 50 350 500 x 110 11 947.00
857.135 RP 75‑350P 75 350 500 x 110 12 1,003.00
Item No. Description Price EUR Center points (ø 16 mm)
With tungsten carbide point 60°, or with bore
857.174 Pair of center points 129.00
with tungsten carbide point 60° according DIN 332‑A 1.6 x 3.8.
857.155 Pair of center points 80.00
with bore
857.180 Pair of prism inserts 112.00
857.174 857.155
857.138 Pair of V‑blocks 211.00 Prism inserts 90° 857.180
857.139 Pair of roller blocks 254.00 Capacity: ø 3 - 15 mm.
857.172 Stop Center height at
857.173 Dial indicator holder 87.00
85.00 ø 10 mm:
70 mm (RP 50) or
857.140 Extra measuring stand 114.00 95 mm (RP 75).
857.138 V‑blocks 90° and roller blocks C06.222.EN.20240626
Capacity V‑blocks: ø 5 - 25 mm.
Capacity roller blocks: ø 2 - 40 mm.
Center height at ø 10 mm: 65 mm.
Stop (857.172): ø 8 mm.
Dial indicator holder (857.173): shaft 8H7.
