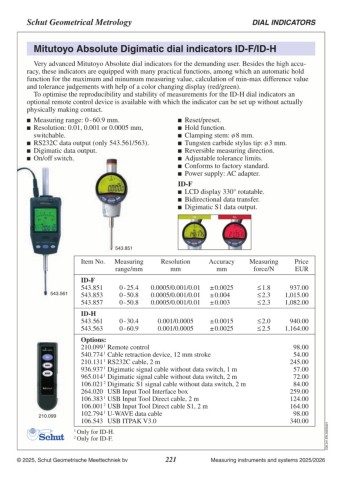

Schut Geometrical Metrology DIAL INDICATORS
Mitutoyo Absolute Digimatic dial indicators ID‑F/ID‑H
Very advanced Mitutoyo Absolute dial indicators for the demanding user. Besides the high accu
racy, these indicators are equipped with many practical functions, among which an automatic hold
function for the maximum and minumum measuring value, calculation of min-max difference value
and tolerance judgements with help of a color changing display (red/green).
To optimise the reproducibility and stability of measurements for the ID‑H dial indicators an
optional remote control device is available with which the indicator can be set up without actually
physically making contact.
Measuring range: 0 - 60.9 mm. Reset/preset.
Resolution: 0.01, 0.001 or 0.0005 mm, Hold function.
Clamping stem: ø 8 mm.
switchable. Tungsten carbide stylus tip: ø 3 mm.
RS232C data output (only 543.561/563). Reversible measuring direction.
Digimatic data output. Adjustable tolerance limits.
On/off switch. Conforms to factory standard.
Power supply: AC adapter.
ID‑F
LCD display 330° rotatable.
Bidirectional data transfer.
Digimatic S1 data output.
OK NG
543.851
Item No. Measuring Resolution Accuracy Measuring Price
range/mm mm mm force/N EUR
543.561 ID‑F 0 - 25.4 0.0005/0.001/0.01 ± 0.0025 ≤ 1.8 937.00
543.851 0 - 50.8 0.0005/0.001/0.01 ± 0.004 ≤ 2.3 1,015.00
543.853 0 - 50.8 0.0005/0.001/0.01 ± 0.003 ≤ 2.3 1,082.00
543.857
ID‑H 0 - 30.4 0.001/0.0005 ± 0.0015 ≤ 2.0 940.00
543.561 0 - 60.9 0.001/0.0005 ± 0.0025 ≤ 2.5 1,164.00
543.563
210.099 Options: 98.00
210.099 1 Remote control 54.00
540.774 1 Cable retraction device, 12 mm stroke 245.00 C05.341.EN.20250321
210.131 1 RS232C cable, 2 m 57.00
936.937 1 Digimatic signal cable without data switch, 1 m 72.00
965.014 1 Digimatic signal cable without data switch, 2 m 84.00
106.021 2 Digimatic S1 signal cable without data switch, 2 m 259.00
264.020 USB Input Tool Interface box 124.00
106.383 1 USB Input Tool Direct cable, 2 m 164.00
106.001 2 USB Input Tool Direct cable S1, 2 m 98.00
102.794 1 U-WAVE data cable 340.00
106.543 USB ITPAK V3.0
1 Only for ID‑H.
2 Only for ID‑F.
