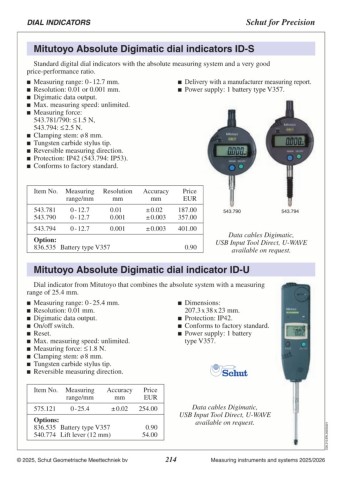

Page 214 - Schut Catalog

DIAL INDICATORS Schut for Precision

Mitutoyo Absolute Digimatic dial indicators ID‑S

Standard digital dial indicators with the absolute measuring system and a very good
price‑performance ratio.

 Measuring range: 0 - 12.7 mm.  Delivery with a manufacturer measuring report.
 Resolution: 0.01 or 0.001 mm.  Power supply: 1 battery type V357.
 Digimatic data output.
 Max. measuring speed: unlimited.
 Measuring force:

543.781/790: ≤ 1.5 N,
543.794: ≤ 2.5 N.
 Clamping stem: ø 8 mm.
 Tungsten carbide stylus tip.
 Reversible measuring direction.
 Protection: IP42 (543.794: IP53).
 Conforms to factory standard.

Item No. Measuring Resolution Accuracy Price
range/mm mm mm EUR

543.781 0 - 12.7 0.01 ± 0.02 187.00 543.790 543.794
543.790 0 - 12.7 0.001 ± 0.003 357.00

543.794 0 - 12.7 0.001 ± 0.003 401.00 Data cables Digimatic,
USB Input Tool Direct, U-WAVE
Option: 0.90
836.535 Battery type V357 available on request.

Mitutoyo Absolute Digimatic dial indicator ID‑U

Dial indicator from Mitutoyo that combines the absolute system with a measuring
range of 25.4 mm.

 Measuring range: 0 - 25.4 mm.  Dimensions:
 Resolution: 0.01 mm. 207.3 x 38 x 23 mm.
 Digimatic data output.
 On/off switch.  Protection: IP42.
 Reset.  Conforms to factory standard.
 Max. measuring speed: unlimited.  Power supply: 1 battery
 Measuring force: ≤ 1.8 N.
 Clamping stem: ø 8 mm. type V357.
 Tungsten carbide stylus tip.
 Reversible measuring direction.

Item No. Measuring Accuracy Price
range/mm mm EUR

575.121 0 - 25.4 ± 0.02 254.00 Data cables Digimatic,
USB Input Tool Direct, U-WAVE
Options: 0.90 C05.213.EN.20250321
836.535 Battery type V357 54.00 available on request.
540.774 Lift lever (12 mm)

© 2025, Schut Geometrische Meettechniek bv 214 Measuring instruments and systems 2025/2026
