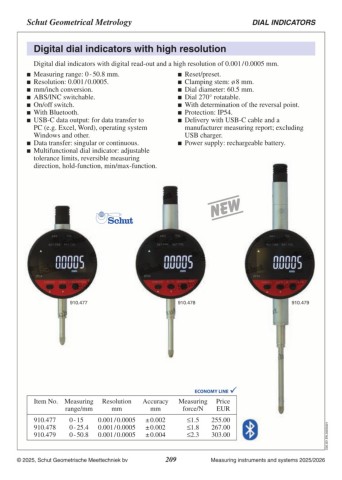

P. 209
Schut Geometrical Metrology
Dial indicators / Dial test indicators / Center instruments
Edge finders / Probes / MF measuring fixture system
Accuracy of dial indicators
according DIN 878
Measuring Max. permissible
range (mm) errors (µm)
0 - 0.4 9
0 - 0.8 9
0 - 3 12
0 - 5 14
0 - 10 17
Accuracy of precision dial
indicators according DIN 879
Graduation Max. permissible
(mm) errors (µm)
0.001 1.2
0.01 12
Accuracy of dial test indicators C05.001.EN.20240625
according DIN 2270
Graduation Max. permissible
(mm) errors (µm)
0.002 4
0.01 13
© 2024, Schut Geometrische Meettechniek bv 209 Measuring instruments and systems 2023/2024
