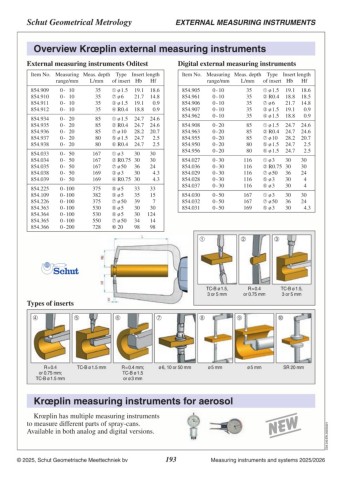

Page 193 - Schut Catalog

Schut Geometrical Metrology EXTERNAL MEASURING INSTRUMENTS

Overview Krœplin external measuring instruments

External measuring instruments Oditest Digital external measuring instruments

Item No. Measuring Meas. depth Type Insert length Item No. Measuring Meas. depth Type Insert length
range/mm L/mm of insert Hb Hf range/mm L/mm of insert Hb Hf

854.909 0 - 10 35  ø 1.5 19.1 18.6 854.905 0 - 10 35  ø 1.5 19.1 18.6
854.910 0 - 10 35  ø 6 21.7 14.8 854.961 0 - 10 35  R0.4 18.8 18.5
854.911 0 - 10 35  ø 1.5 19.1 0.9 854.906 0 - 10 35  ø 6 21.7 14.8
854.912 0 - 10 35  R0.4 18.8 0.9 854.907 0 - 10 35  ø 1.5 19.1 0.9
854.962 0 - 10 35  ø 1.5 18.8 0.9
854.934 0 - 20 85  ø 1.5 24.7 24.6
854.935 0 - 20 85  R0.4 24.7 24.6 854.908 0 - 20 85  ø 1.5 24.7 24.6
854.936 0 - 20 85  ø 10 28.2 20.7 854.963 0 - 20 85  R0.4 24.7 24.6
854.937 0 - 20 80  ø 1.5 24.7 2.5 854.955 0 - 20 85  ø 10 28.2 20.7
854.938 0 - 20 80  R0.4 24.7 2.5 854.950 0 - 20 80  ø 1.5 24.7 2.5
854.956 0 - 20 80  ø 1.5 24.7 2.5
854.033 0 - 50 167  ø 3 30 30
854.034 0 - 50 167  R0.75 30 30 854.027 0 - 30 116  ø 3 30 30
854.035 0 - 50 167  ø 50 36 24 854.036 0 - 30 116  R0.75 30 30
854.038 0 - 50 169  ø 3 30 4.3 854.029 0 - 30 116  ø 50 36 24
854.039 0 - 50 169  R0.75 30 4.3 854.028 0 - 30 116  ø 3 30 4
854.037 0 - 30 116  ø 3 30 4
854.225 0 - 100 375  ø 5 33 33
854.109 0 - 100 382  ø 5 35 15 854.030 0 - 50 167  ø 3 30 30
854.226 0 - 100 375  ø 50 39 7 854.032 0 - 50 167  ø 50 36 24
854.363 0 - 100 530  ø 5 30 30 854.031 0 - 50 169  ø 3 30 4.3
854.364 0 - 100 530  ø 5 30 124
854.365 0 - 100 550  ø 50 34 14
854.366 0 - 200 728  20 98 98

➀ ➁➂

TC-B ø 1.5, R = 0.4 TC-B ø 1.5,
3 or 5 mm or 0.75 mm 3 or 5 mm

Types of inserts ➈ ➉
➃➄➅➆

R = 0.4 TC-B ø 1.5 mm R = 0.4 mm; ø 6, 10 or 50 mm ø 5 mm ø 5 mm SR 20 mm
or 0.75 mm; TC-B ø 1.5
TC-B ø 1.5 mm or ø 3 mm

Krœplin measuring instruments for aerosol C04.340.EN.20250321

Krœplin has multiple measuring instruments
to measure different parts of spray-cans.
Available in both analog and digital versions.

© 2025, Schut Geometrische Meettechniek bv 193 Measuring instruments and systems 2025/2026
