Schut Geometrical Metrology INTERNAL & EXTERNAL MEASURING INSTRUMENTS

Krœplin digital internal and external measuring instruments

Krœplin’s new generation of QuickTest measuring instruments has a compact, ergonomical
design.The digital-analog display makes read-out easier. Now with wireless rechargeable battery and
Bluetooth data interface.

 Measuring range: 0 - 25 mm.  Bluetooth: up to 8 gauges simultaneously.
 Resolution: 0.001, 0.002, 0.005, 0.01, 0.02 or  Automatic switch-off.
 Storage for 100 measuring values.
0.05 mm, adjustable.  Reset/preset.
 mm/inch conversion.  Protection: IP67.
 ABS/INC switchable.  Wireless charging.
 Mitutoyo Digimatic, Mitutoyo U-WAVE,  Delivery with a manufacturer measuring

USB or Bluetooth data outputs optionally report and charging pad.
available.  Power supply: rechargeable li-polymer
 With tolerance display by means of red/green
LED. battery.
 Hold and min/max functions.

854.067

854.069

Item No. Type Measuring Resolution Accuracy Repeatability Price

range/mm mm mm mm EUR

Internal measuring instruments: 0.005 494.20
854.066 G002 2.5 - 12.5 0.001 ± 0.01 0.005 494.20
854.067 G005 5 - 20 0.001 ± 0.01 0.005 494.20
854.068 G010 10 - 25 0.001 ± 0.01

External measuring instruments: 494.20
854.069 C015 0 - 15 0.001 ± 0.01 0.005 494.20
854.070 C015S 0 - 15 0.001 ± 0.015 0.005

Options: Digimatic interface type 8006-17 104.80
854.071 Digimatic cable 72.00
965.013 1 USB cable 124.00
206.380 1 U-WAVE cable 98.00
102.790 1

854.072 2 Bluetooth interface adapter type 8006-16 104.80
854.073 Bluetooth PC dongle type 0682-60 9.60

854.074 Wooden case type 1732-38 47.10

1 For data output the Digimatic interface and cable are needed.
2 Bluetooth interface adapter is delivered with a Bluetooth PC dongle (854.073).

Item No. Meas. Groove Groove Type Insert Insert
depth depth width of length length
854.066 L/mm A/mm B/mm Hf/mm
854.067 insert Hb/mm
854.068 12 0.7 0.6 0.9
854.069 44 2.2 0.8  R0.12 0.9 2.2
854.070 46 4 1.5  ø 0.6 2.2 4.4
 ø 1 4.4
45 – – 17
45 – –  ø 1.5 17 12 C04.319.EN.20240625
 R0.4 12

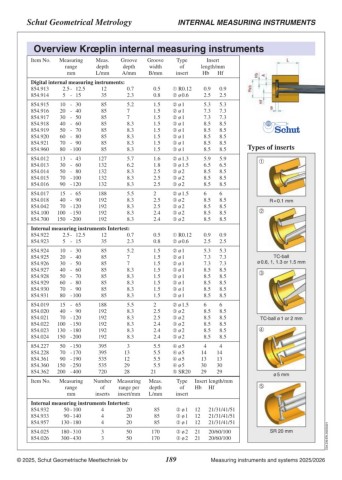

See for  and :  and  on the page “Overview Krœplin internal measuring instruments”.
See for  and :  and  on the page “Overview Krœplin external measuring instruments”.
