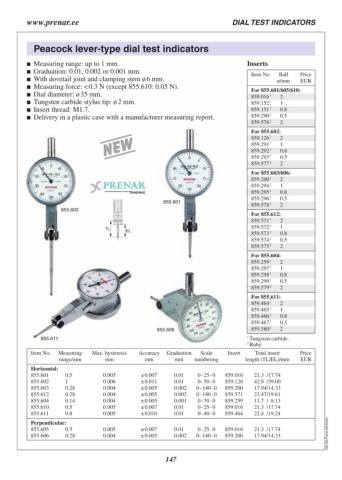

www.prenar.ee DIAL TEST INDICATORS

Peacock lever-type dial test indicators

 Measuring range: up to 1 mm. Inserts
 Graduation: 0.01, 0.002 or 0.001 mm.
 With dovetail joint and clamping stem ø 6 mm. Item No. Ball Price
 Measuring force: < 0.3 N (except 855.610: 0.05 N). ø/mm EUR
 Dial diameter: ø 35 mm.
 Tungsten carbide stylus tip: ø 2 mm. For 855.601/605/610:
 Insert thread: M1.7. 859.016 1 2
 Delivery in a plastic case with a manufacturer measuring report. 859.152 1 1
859.151 1 0.8
859.290 1 0.5
859.576 2 2

For 855.602:
859.126 1 2
859.291 1 1
859.292 1 0.8
859.293 1 0.5
859.577 2 2

855.601 For 855.603/606:
859.200 1 2
855.602 859.294 1 1
859.295 1 0.8
859.296 1 0.5
859.578 2 2

TL EL For 855.612:
859.571 1 2
859.572 1 1
859.573 1 0.8
859.574 1 0.5
859.575 2 2

For 855.604:
859.259 1 2
859.297 1 1
859.298 1 0.8
859.299 1 0.5
859.579 2 2

855.606 For 855.611:
859.464 1 2
859.465 1 1
859.466 1 0.8
859.467 1 0.5
859.580 2 2

855.611 1 Tungsten carbide.
2 Ruby.

Item No. Measuring Max. hysteresis Accuracy Graduation Scale Insert Total insert Price

range/mm mm mm mm numbering length (TL/EL)/mm EUR

Horizontal: 0.5 0.005 ± 0.007 0.01 0 - 25 - 0 859.016 21.3 /17.74
855.601 1 0.006 ± 0.011 0.01 0 - 50 - 0 859.126 42.8 /39.00
855.602 0.28 0.004 ± 0.005 0.002 0 - 140 - 0 859.200 17.94/14.33
855.603 0.28 0.004 ± 0.005 0.002 0 - 140 - 0 859.571 23.47/19.61
855.612 0.14 0.004 ± 0.005 0.001 0 - 70 - 0 859.259 11.7 / 8.13
855.604 0.5 0.005 ± 0.007 0.01 0 - 25 - 0 859.016 21.3 /17.74
855.610 0.8 0.005 ± 0.010 0.01 0 - 40 - 0 859.464 22.4 /19.24
855.611

Perpendicular: 0.005 ± 0.007 0.01 0 - 25 - 0 859.016 21.3 /17.74 C05.225.Prenar.20240422
855.605 0.5 0.004 ± 0.005 0.002 0 - 140 - 0 859.200 17.94/14.33
855.606 0.28
