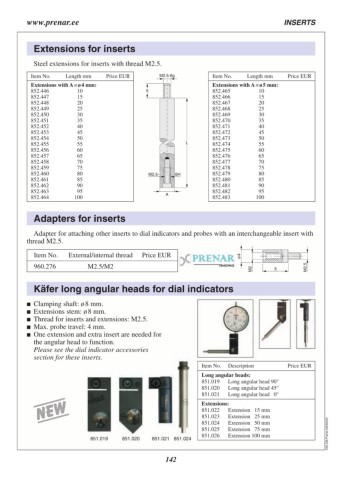

www.prenar.ee INSERTS
Extensions for inserts
Steel extensions for inserts with thread M2.5.
Item No. Length mm Price EUR M2.5-6g Item No. Length mm Price EUR
5
Extensions with A = ø 4 mm: Extensions with A = ø 5 mm:
852.446 10 852.465 10
852.447 15 852.466 15
852.448 20 852.467 20
852.449 25 852.468 25
852.450 30 852.469 30
852.451 35 852.470 35
852.452 40 852.471 40
852.453 45 852.472 45
852.454 50 852.473 50
852.455 55 L 852.474 55
852.456 60 852.475 60
852.457 65 852.476 65
852.458 70 852.477 70
852.459 75 852.478 75
852.460 80 852.479 80
852.461 85 M2.5- 6H 852.480 85
852.462 90 852.481 90
852.463 95 852.482 95
852.464 100 A 852.483 100
Adapters for inserts
Adapter for attaching other inserts to dial indicators and probes with an interchangeable insert with
thread M2.5.
Item No. External/internal thread Price EUR ø4
M2
960.276 M2.5/M2 M2.55
Käfer long angular heads for dial indicators
Clamping shaft: ø 8 mm.
Extensions stem: ø 8 mm.
Thread for inserts and extensions: M2.5.
Max. probe travel: 4 mm.
One extension and extra insert are needed for
the angular head to function.
Please see the dial indicator accessories
section for these inserts.
Item No. Description Price EUR
851.019 851.020 851.021 851.024 Long angular heads: C05.336.Prenar.20240422
851.019 Long angular head 90°
851.020 Long angular head 45°
851.021 Long angular head 0°
Extensions:
851.022 Extension 15 mm
851.023 Extension 25 mm
851.024 Extension 50 mm
851.025 Extension 75 mm
851.026 Extension 100 mm
