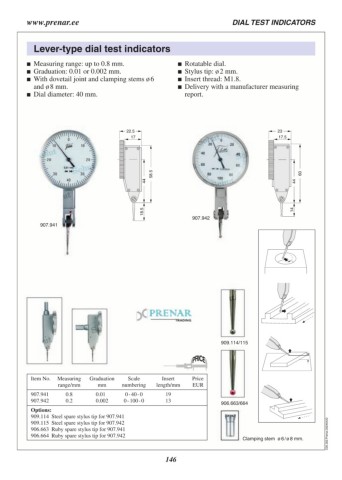

Lever-type dial test indicators
Measuring range: up to 0.8 mm. Rotatable dial.
Graduation: 0.01 or 0.002 mm. Stylus tip: ø 2 mm.
With dovetail joint and clamping stems ø 6 Insert thread: M1.8.
Delivery with a manufacturer measuring
and ø 8 mm.
Dial diameter: 40 mm. report.
22.5 23
17 17.5
44 44
58.5 60
18.5 14
907.942
907.941
909.114/115
Item No. Measuring Graduation Scale Insert Price
EUR
range/mm mm numbering length/mm
907.941 0.8 0.01 0 - 40 - 0 19 906.663/664
907.942 0.2 0.002 0 - 100 - 0 13 Clamping stem ø 6 / ø 8 mm.
Options: C05.302.Prenar.20240422
909.114 Steel spare stylus tip for 907.941
909.115 Steel spare stylus tip for 907.942
906.663 Ruby spare stylus tip for 907.941
906.664 Ruby spare stylus tip for 907.942
