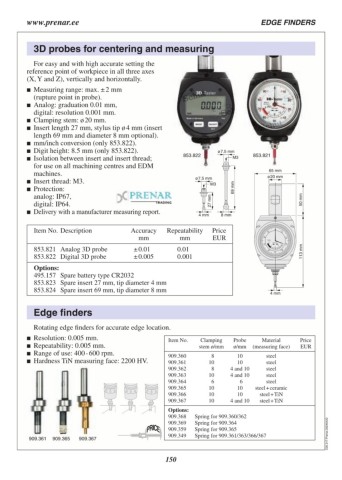

www.prenar.ee EDGE FINDERS

3D probes for centering and measuring

For easy and with high accurate setting the 853.822 ø7.5 mm 853.821
reference point of workpiece in all three axes M3 65 mm
(X, Y and Z), vertically and horizontally. ø20 mm
 Measuring range: max. ± 2 mm ø7.5 mm
M3 4 mm
(rupture point in probe). 27 mm
 Analog: graduation 0.01 mm, 69 mm 50 mm

digital: resolution 0.001 mm. 4 mm 8 mm
 Clamping stem: ø 20 mm.
 Insert length 27 mm, stylus tip ø 4 mm (insert

length 69 mm and diameter 8 mm optional).
 mm/inch conversion (only 853.822).
 Digit height: 8.5 mm (only 853.822).
 Isolation between insert and insert thread;

for use on all machining centres and EDM
machines.
 Insert thread: M3.
 Protection:
analog: IP67,
digital: IP64.
 Delivery with a manufacturer measuring report.

Item No. Description Accuracy Repeatability Price
mm mm EUR

853.821 Analog 3D probe ± 0.01 0.01 113 mm
853.822 Digital 3D probe ± 0.005 0.001

Options:
495.157 Spare battery type CR2032
853.823 Spare insert 27 mm, tip diameter 4 mm
853.824 Spare insert 69 mm, tip diameter 8 mm

Edge finders

Rotating edge finders for accurate edge location.

 Resolution: 0.005 mm. Item No. Clamping Probe Material Price
 Repeatability: 0.005 mm. stem ø/mm ø/mm (measuring face) EUR
 Range of use: 400 - 600 rpm. 909.360
 Hardness TiN measuring face: 2200 HV. 909.361 8 10 steel
909.362 10 10 steel
909.363 8 4 and 10 steel
909.364 10 4 and 10 steel
909.365 6 6 steel
909.366 10 10 steel + ceramic
909.367 10 10 steel + TiN
10 4 and 10 steel + TiN

909.361 909.365 909.367 Options: Spring for 909.360/362 C05.317.Prenar.20240422
909.368 Spring for 909.364
909.369 Spring for 909.365
909.359 Spring for 909.361/363/366/367
