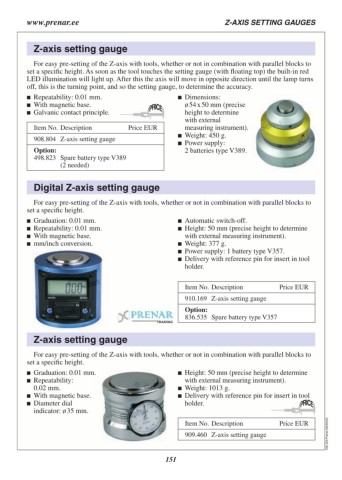

www.prenar.ee Z-AXIS SETTING GAUGES

Z-axis setting gauge

For easy pre-setting of the Z-axis with tools, whether or not in combination with parallel blocks to
set a specific height. As soon as the tool touches the setting gauge (with floating top) the built-in red
LED illumination will light up. After this the axis will move in opposite direction until the lamp turns
off, this is the turning point, and so the setting gauge, to determine the accuracy.

 Repeatability: 0.01 mm.  Dimensions:
 With magnetic base. ø 54 x 50 mm (precise
 Galvanic contact principle. height to determine
with external
Item No. Description Price EUR measuring instrument).

908.804 Z-axis setting gauge  Weight: 450 g.
 Power supply:
Option:
498.823 Spare battery type V389 2 batteries type V389.

(2 needed)

Digital Z-axis setting gauge

For easy pre-setting of the Z-axis with tools, whether or not in combination with parallel blocks to
set a specific height.

 Graduation: 0.01 mm.  Automatic switch-off.
 Repeatability: 0.01 mm.  Height: 50 mm (precise height to determine
 With magnetic base.
 mm/inch conversion. with external measuring instrument).
 Weight: 377 g.
 Power supply: 1 battery type V357.
 Delivery with reference pin for insert in tool

holder.

Item No. Description Price EUR

910.169 Z-axis setting gauge

Option:
836.535 Spare battery type V357

Z-axis setting gauge

For easy pre-setting of the Z-axis with tools, whether or not in combination with parallel blocks to
set a specific height.

 Graduation: 0.01 mm.  Height: 50 mm (precise height to determine
 Repeatability: with external measuring instrument).

0.02 mm.  Weight: 1013 g.
 With magnetic base.  Delivery with reference pin for insert in tool
 Diameter dial
holder.
indicator: ø 35 mm.

Item No. Description Price EUR C05.324.Prenar.20240422

909.460 Z-axis setting gauge

151
