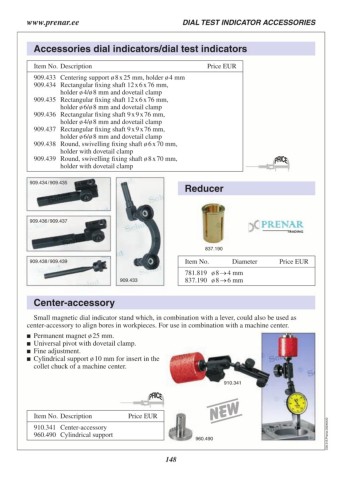

P. 148
www.prenar.ee DIAL TEST INDICATOR ACCESSORIES
Accessories dial indicators/dial test indicators
Item No. Description Price EUR
909.433 Centering support ø 8 x 25 mm, holder ø 4 mm
909.434 Rectangular fixing shaft 12 x 6 x 76 mm,
holder ø 4/ø 8 mm and dovetail clamp
909.435 Rectangular fixing shaft 12 x 6 x 76 mm,
holder ø 6/ø 8 mm and dovetail clamp
909.436 Rectangular fixing shaft 9 x 9 x 76 mm,
holder ø 4/ø 8 mm and dovetail clamp
909.437 Rectangular fixing shaft 9 x 9 x 76 mm,
holder ø 6/ø 8 mm and dovetail clamp
909.438 Round, swivelling fixing shaft ø 6 x 70 mm,
holder with dovetail clamp
909.439 Round, swivelling fixing shaft ø 8 x 70 mm,
holder with dovetail clamp
909.434 / 909.435 Reducer
909.436 / 909.437
837.190
909.438 / 909.439 Item No. Diameter Price EUR
909.433 781.819 ø 8 → 4 mm
837.190 ø 8 → 6 mm
Center-accessory
Small magnetic dial indicator stand which, in combination with a lever, could also be used as
center-accessory to align bores in workpieces. For use in combination with a machine center.
Permanent magnet ø 25 mm.
Universal pivot with dovetail clamp.
Fine adjustment.
Cylindrical support ø 10 mm for insert in the
collet chuck of a machine center.
910.341
Item No. Description Price EUR C05.315.Prenar.20240422
910.341 Center-accessory
960.490 Cylindrical support 960.490
148
