Page 98 - Schut Catalog

MICROMETERS Schut for Precision

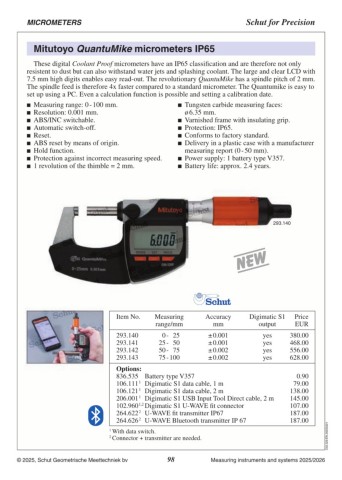

Mitutoyo QuantuMike micrometers IP65

These digital Coolant Proof micrometers have an IP65 classification and are therefore not only
resistent to dust but can also withstand water jets and splashing coolant. The large and clear LCD with
7.5 mm high digits enables easy read-out. The revolutionary QuantuMike has a spindle pitch of 2 mm.
The spindle feed is therefore 4x faster compared to a standard micrometer. The Quantumike is easy to
set up using a PC. Even a calculation function is possible and setting a calibration date.

 Measuring range: 0 - 100 mm.  Tungsten carbide measuring faces:
 Resolution: 0.001 mm. ø 6.35 mm.
 ABS/INC switchable.
 Automatic switch-off.  Varnished frame with insulating grip.
 Reset.  Protection: IP65.
 ABS reset by means of origin.  Conforms to factory standard.
 Hold function.  Delivery in a plastic case with a manufacturer
 Protection against incorrect measuring speed.
 1 revolution of the thimble = 2 mm. measuring report (0 - 50 mm).
 Power supply: 1 battery type V357.
 Battery life: approx. 2.4 years.

293.140

Item No. Measuring Accuracy Digimatic S1 Price
range/mm mm output EUR

293.140 0 - 25 ± 0.001 yes 380.00
293.141 25 - 50 ± 0.001 yes 468.00
293.142 50 - 75 ± 0.002 yes 556.00
293.143 75 - 100 ± 0.002 yes 628.00

Options: 0.90 C03.329.EN.20250321
836.535 Battery type V357 79.00
106.111 1 Digimatic S1 data cable, 1 m 138.00
106.121 1 Digimatic S1 data cable, 2 m 145.00
206.001 1 Digimatic S1 USB Input Tool Direct cable, 2 m 107.00
102.960 1,2 Digimatic S1 U-WAVE fit connector 187.00
264.622 2 U-WAVE fit transmitter IP67 187.00
264.626 2 U-WAVE Bluetooth transmitter IP 67

1 With data switch.
2 Connector + transmitter are needed.

© 2025, Schut Geometrische Meettechniek bv 98 Measuring instruments and systems 2025/2026
