PROBES AND PROBE SYSTEMS Schut for Precision

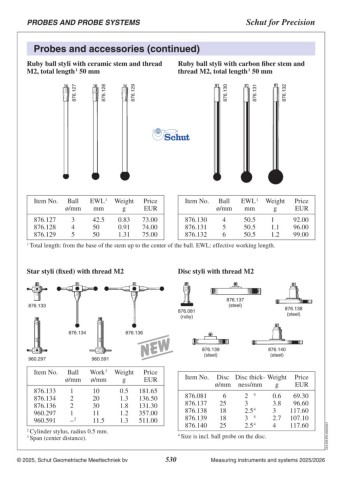

Probes and accessories
The element of the product to be measured determines the type
and length of the probe. Maximum rigidity of the stem and perfect
roundness of the ball are very important.
Only the M2 styli of the Renishaw probe program have been in
cluded in this catalog. M3, M4 and M5 are also available on request.
The M2 probes are primarily suitable for the TP2, TP20 and TP200
probe systems.
overall length
Choosing probes for inspections EWL
In order to maximize the accuracy of
the main part of the probe applications,
we advise you to use:
ball/stem
– the shortest and stiffest probes possible; the more the probe bends or clearence
deviates, the lower the measuring accuracy.
– the largest possible probe ball; the bigger the probe ball, the greater the
free space between the ball and the stem and the smaller the effect of the surface condition of the
product that has to be measured.
– as little extensions as possible; every connection introduces a potential diffraction or deviation.
Ruby ball styli with stainless steel stem and thread M2
876.068 876.105 Item No. Ball EWL * Weight Price
876.102 ø/mm mm g EUR
876.103
876.104 Total length * 10 mm: 30.00
876.068 1 4.5 0.3 25.00
876.106 876.102 1.5 4.5 0.3 21.00
876.107 876.103 2 6 0.3 23.00
876.078 876.104 2.5 6 0.3 25.00
876.108 876.105 3 7.5 0.4 24.00
876.106 4 10 0.4 33.00
876.107 5 10 0.7 37.00
876.078 6 10 0.9
876.062 Total length * 11 mm: 68.00
876.109 876.108 8 11 1.5
876.076
876.069 Total length * 20 mm: 25.00
876.062 2 14 0.4 25.00
876.109 2.5 14 0.4 26.00 C24.301.EN.20240626
876.076 3 17.5 0.5 27.00
876.069 4 20.2 0.6
* Total length: from the base of the stem up to the
center of the ball. EWL: effective working length.
