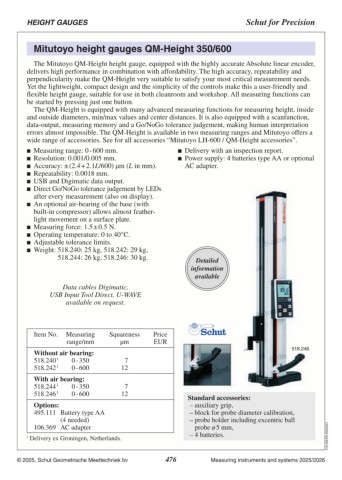

Page 476 - Schut Catalog

HEIGHT GAUGES Schut for Precision

Mitutoyo height gauges QM‑Height 350/600

The Mitutoyo QM‑Height height gauge, equipped with the highly accurate Absolute linear encoder,
delivers high performance in combination with affordability. The high accuracy, repeatability and
perpendicularity make the QM‑Height very suitable to satisfy your most critical measurement needs.
Yet the lightweight, compact design and the simplicity of the controls make this a user-friendly and
flexible height gauge, suitable for use in both cleanroom and workshop. All measuring functions can
be started by pressing just one button.

The QM‑Height is equipped with many advanced measuring functions for measuring height, inside
and outside diameters, min/max values and center distances. It is also equipped with a scanfunction,
data-output, measuring memory and a Go/NoGo tolerance judgement, making human interpretation
errors almost impossible. The QM‑Height is available in two measuring ranges and Mitutoyo offers a
wide range of accessories. See for all accessories “Mitutoyo LH‑600 / QM‑Height accessories”.

 Measuring range: 0 - 600 mm.  Delivery with an inspection report.
 Resolution: 0.001/0.005 mm.  Power supply: 4 batteries type AA or optional
 Accuracy: ± (2.4 + 2.1L/600) µm (L in mm).
 Repeatability: 0.0018 mm. AC adapter.
 USB and Digimatic data output.
 Direct Go/NoGo tolerance judge­ment by LEDs Detailed
information
after every measurement (also on display).
 An optional air-bearing of the base (with available

built-in compressor) allows almost feather-
light movement on a surface plate.
 Measuring force: 1.5 ± 0.5 N.
 Operating temperature: 0 to 40°C.
 Adjustable tolerance limits.
 Weight: 518.240: 25 kg, 518.242: 29 kg,
518.244: 26 kg, 518.246: 30 kg.

Data cables Digimatic,
USB Input Tool Direct, U-WAVE

available on request.

Item No. Measuring Squareness Price
range/mm µm EUR

Without air bearing: 7 518.246
518.240 1 0 - 350 12
518.242 1 0 - 600 Standard accessories:
– auxiliary grip,
With air bearing: 7 – block for probe diameter calibration,
518.244 1 0 - 350 12 – probe holder including excentric ball
518.246 1 0 - 600
probe ø 5 mm,
Options: – 4 batteries. C16.309.EN.20250321
495.111 Battery type AA

(4 needed)
106.369 AC adapter

1 Delivery ex Groningen, Netherlands.
