Schut Geometrical Metrology HEIGHT GAUGES
TESA Micro-Hite/Micro-Hite+M 350/600/900
The TESA Micro-Hite and the TESA Micro-Hite+M (motorized) 350/600/900 are universal
height gauges with air cushion for use in the measuring room as well as in the workshop for 1D as
well as 2D measurements. Very suitable for accurate internal, external, height, depth and distance
measurements of various measuring objects with flat, parallel or cylindrical surfaces. The measuring
program in the control unit calculates all relations between the measuring features automatically. 2D
measurements can be performed by rotating the work piece 90° (or other known angle) to determine
for example bore coordinates, bolt hole circles or angles between circles.
These height gauges distinguish themselves from other height gauges by excellent performance and
logical and easy operation using the rotatable and swivelable control unit. The control unit consists
of a touchscreen and physical buttons for fast and intuitive operation. Due to the exclusive transport
wheel the TESA Micro-Hite and the TESA Micro-Hite+M combine the speed of a manually operated
height gauge with the precision and easy handling of a motorized one.
Measuring range: Weight: 350: 33 kg, 600: 37 kg, 900: 45 kg. C16.302.EN.20250106

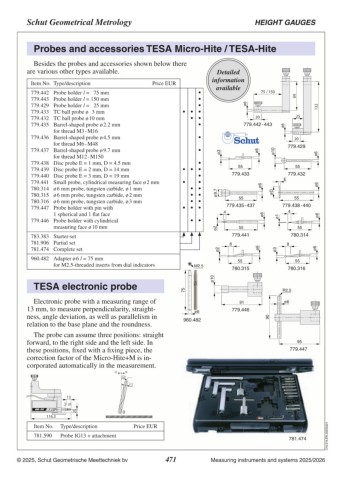

350: 365 mm, 600: 615 mm, 900: 920 mm. For optional probes and accessories see
Max. range with standard holder and probe: “Probes and accessories TESA Micro‑Hite /
350: 520 mm, 600: 770 mm, 900: 1075 mm. TESA‑Hite”.
TESA Micro-Hite 350/600/900
Max. range with long probe holder: Accuracy: 2 + 2 L / 1000 (L in mm).
350: 745 mm, 600: 995 mm, 900: 1300 mm. Repeatability:
≤ 1 µm (flat surfaces),
Resolution: 0.0001 /0.001 / 0.01 mm. ≤ 1 µm (radius).
mm/inch conversion. TESA Micro-Hite+M 350/600/900
Measuring force: 1.6 ± 0.25 N. Accuracy: 1.8 + 2 L / 1000 (L in mm).
Squareness (frontal): Repeatability:
≤ 0.5 µm (flat surfaces),
350: 7 µm, 600: 9 µm, 900: 11 µm ≤ 1 µm (radius).
(with IG13 probe resp. 5 µm, 7 µm, 9 µm).
SCS certificate included. Detailed
Complete stand-alone design, without information
cable. Ideal for incoming goods inspection
and product inspection in a production available
environment.
Air cushion for easy displacement on an 783.505
optional surface plate (see surface plates
elsewhere in this catalog).
High accuracy in length, straightness and
perpendicularity measurements through CAA
(Computer Aided Accuracy).
Fast, easy and reliable probing of the
workpiece, in particular with bore
measurements, through constant measuring
force.
Optical and acoustic signal to confirm the
measuring value.
Calculations are performed automatically.
Integrated calculator to perform calculations
using measurements.
Automatic determination of the culmination
point with cylindrical surfaces.
Processing and saving of data through the
optional mounted printer, USB stick or via
(wireless) TLC connection to the PC.
