Schut Geometrical Metrology HEIGHT GAUGES

Mitutoyo CNC height gauges Linear Height LH‑600F/FG

The integration of CNC technology in this height gauge enables fully automated measurements with a
fixed measuring speed and measuring force. This ensures the best possible accuracy and repeatability.

The air-bearing of the base (with built-in compressor) allows almost feather-light movement on a
surface plate. Equipped with the unique “semi-floating”, ideal for scanning purposes, for example to find a
maximum value.

These height gauges distinguish themselves from other height gauges by excellent performance and
logical and easy operation using the rotatable and tiltable control unit. The control unit consists of a
touchscreen and physical buttons for fast and intuitive operation. The Linear Height has 21 (measuring)
functions, motorized probe movement, storage space for 50 programs and 100000 measurements which
can can be statistically processed. The most occuring measurements can be done by the single press of a
button.

A special and fully automated measuring program for squareness checks is included. By connecting an
external Digimatic dial indicator, both squareness and position can be measured at the same time.

 Excellent accuracy and a special measuring  Internal storage for measurement values
system with a 0.1 µm resolution. and measuring programs; optional external
data storage with a USB stick or via a USB
 Automatic repeat of measuring programs interface to a PC.
stored with the learning function.
 Direct printing of measurement values on an
 Direct display of Go/NoGo tolerance judge­ external printer.
ment after every measurement.
 Delivery with an inspection report.
 Data entry from a Digimatic instrument.
 Air cushion for easy displacement on an Detailed
information
optional surface plate (see surface plates
elsewhere in this catalog). available
 Complete stand-alone design, without
cable. Ideal for incoming goods inspection
and product inspection in a production
environment.
 Clear and conveniently laid out graphical
color touchscreen with numeric and
alphanumeric keys.

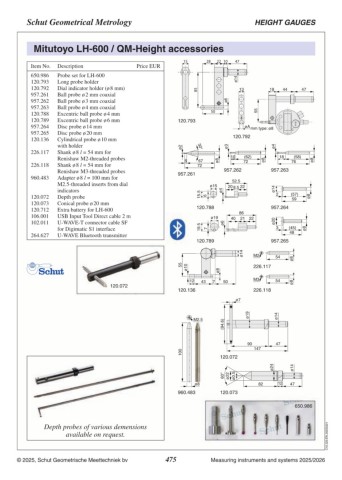

LH‑600 standard accessories
The Mitutoyo Linear Height is standard

supplied with:
– probe holder including excentric ball probe

ø 5 mm,
– block for probe diameter calibration,
– rechargeable Ni-MH battery,
– control panel 1D/2D,
– AC adapter, 12V, 4A (without power cable),
– dust cover.

Item No. Type Price EUR
518.360 1 LH‑600F
518.361 1 LH‑600FG 518.361
Option:
420.300 AC adapter cable (not supplied) C16.318.EN.20250106
1 Delivery ex Groningen, Netherlands.
