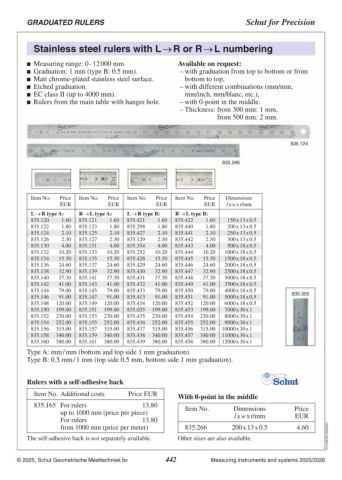

Page 442 - Schut Catalog

GRADUATED RULERS Schut for Precision

Stainless steel rulers with L → R or R → L numbering

 Measuring range: 0 - 12 000 mm. Available on request:
 Graduation: 1 mm (type B: 0.5 mm). – with graduation from top to bottom or from
 Matt chrome-plated stainless steel surface.
 Etched graduation. bottom to top,
 EC class II (up to 4000 mm). – with different combinations (mm/mm,
 Rulers from the main table with hanger hole.
mm/inch, mm/blanc, etc.),
– with 0-point in the middle.
– Thickness: from 300 mm: 1 mm,

from 500 mm: 2 mm.

835.124

835.266

Item No. Price Item No. Price Item No. Price Item No. Price Dimensions

EUR EUR EUR EUR l x w x t/mm

L → R type A: R → L type A: L → R type B: R → L type B: 835.355
835.120 1.60 835.121 1.60 835.421 1.60 835.422 1.60 150 x 13 x 0.5
835.122 1.80 835.123 1.80 835.298 1.80 835.440 1.80 200 x 13 x 0.5
835.124 2.20 835.125 2.20 835.427 2.20 835.441 2.20 250 x 13 x 0.5
835.126 2.40 835.127 2.40 835.129 2.40 835.442 2.40 300 x 13 x 0.5
835.130 4.10 835.131 4.10 835.354 4.10 835.443 4.10 500 x 18 x 0.5
835.132 10.30 835.133 10.30 835.252 10.30 835.444 10.30 1000 x 18 x 0.5
835.134 15.50 835.135 15.50 835.428 15.50 835.445 15.50 1500 x 18 x 0.5
835.136 25.00 835.137 25.00 835.429 25.00 835.446 25.00 2000 x 18 x 0.5
835.138 33.40 835.139 33.40 835.430 33.40 835.447 33.40 2500 x 18 x 0.5
835.140 37.90 835.141 37.90 835.431 37.90 835.448 37.90 3000 x 18 x 0.5
835.142 42.00 835.143 42.00 835.432 42.00 835.449 42.00 3500 x 18 x 0.5
835.144 80.00 835.145 80.00 835.433 80.00 835.450 80.00 4000 x 18 x 0.5
835.146 92.00 835.147 92.00 835.413 92.00 835.451 92.00 5000 x 18 x 0.5
835.148 122.00 835.149 122.00 835.434 122.00 835.452 122.00 6000 x 18 x 0.5
835.150 202.00 835.151 202.00 835.035 202.00 835.453 202.00 7000 x 30 x 1
835.152 233.00 835.153 233.00 835.435 233.00 835.454 233.00 8000 x 30 x 1
835.154 256.00 835.155 256.00 835.436 256.00 835.455 256.00 9000 x 30 x 1
835.156 320.00 835.157 320.00 835.437 320.00 835.456 320.00 10000 x 30 x 1
835.158 345.00 835.159 345.00 835.438 345.00 835.457 345.00 11000 x 30 x 1
835.160 386.00 835.161 386.00 835.439 386.00 835.458 386.00 12000 x 30 x 1

Type A: mm / mm (bottom and top side 1 mm graduation).
Type B: 0.5 mm / 1 mm (top side 0.5 mm, bottom side 1 mm graduation).

Rulers with a self-adhesive back

Item No. Additional costs Price EUR With 0-point in the middle

835.165 For rulers 13.80 Item No. Dimensions Price
up to 1000 mm (price per piece) l x w x t/mm EUR
For rulers 13.80 4.60
from 1000 mm (price per meter) 835.266 200 x 13 x 0.5 C14.305.EN.20250605

The self-adhesive back is not separately available. Other sizes are also available.

© 2025, Schut Geometrische Meettechniek bv 442 Measuring instruments and systems 2025/2026
