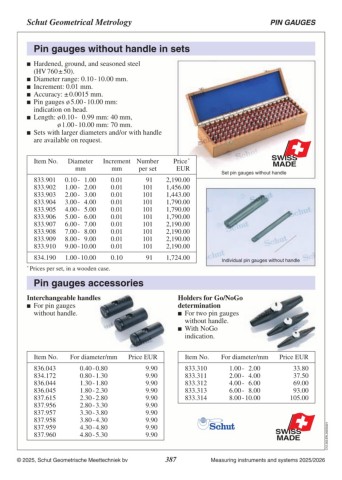

Schut Geometrical Metrology PIN GAUGES
Pin gauges
Swiss made, hardened and ground steel pin gauges, conforms to DIN 2269;
available separately and in sets.
Hardened, ground, and seasoned steel
(HV 760 ± 50).
Diameter range:
without handle: 0.06 - 20.00 mm,
with handle: 0.06 - 10.00 mm.
Increment: 0.01 mm.
Accuracy: ± 0.0015 mm.
Pin gauges ø 5.00 - 20.00 mm
without handle: indication on head.
Also available: Item No. Description Price EUR
With an accuracy of ± 0.0003 or ± 0.001 mm;
– hardened steel ø 0.06 - 20.00 mm, Wooden case (tubes not included): 166.00
– tungsten carbide or ceramics ø 0.50 - 9.99 mm, 833.211 For 50 pin gauges
with 0.01 mm increments. The length may
deviate. More information available on request.
Diameter/mm Length/mm Price EUR ø 0.10 - 10.00 mm without handle
833.704 For 100 pin gauges
ø 0.10 - 10.00 mm without handle
Pin gauge without handle: 833.264 For 50 pin gauges
0.06 - 0.09 1 30 124.00
0.10 - 0.19 1 40 89.00 ø 0.10 - 10.00 mm with handle
56.00 833.118 For 40 pin gauges
0.20 - 0.29 1 40 31.40 ø 10.01 - 15.00 mm
0.30 - 0.49 1 40 17.70
0.50 - 0.99 1 40 13.70 833.705 For 80 pin gauges
17.70 ø 10.01 - 15.00 mm
1.00 - 2.99 70 17.70 833.706 For 30 pin gauges
3.00 - 4.00 70 17.70
4.01 - 5.00 70 23.40 ø 15.01 - 20.00 mm
28.20
5.01 - 5.99 70 32.70 Plastic tubes for pin gauges 1:
6.00 - 9.99 70 41.00 833.066 Without handle up to ø 0.99 mm 2.40
10.00 - 11.99 70 50.00 838.224 Without handle ø 1.00 - 7.00 mm 2.40
12.00 - 13.99 70 58.00 838.089 With handle up to ø 0.99 mm 2.30
14.00 - 15.99 70
16.00 - 18.99 70 1 For insert in wooden case.
19.00 - 20.00 70
Pin gauge with handle 2:
0.06 - 0.09 1 23 139.00
0.10 - 0.19 1 33 105.00
0.20 - 0.29 1 33
0.30 - 0.49 1 33 71.00
0.50 - 0.99 1 33 41.00
1.00 - 2.99 62 26.90
3.00 - 4.00 62 22.90
4.01 - 5.00 62 42.00
5.01 - 5.99 62 42.00
6.00 - 10.00 62 42.00
48.00 C12.204.EN.20240626
1 Delivered in a plastic transport case.
2 The length here indicates the measuring length and
not the total length of the pin gauges.
