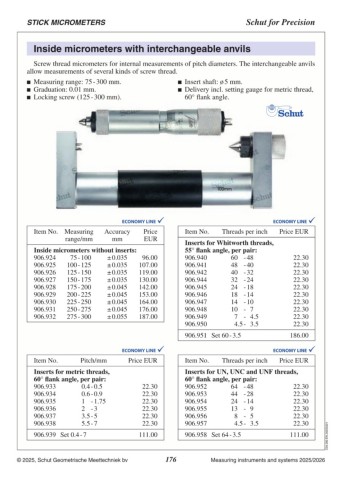

STICK MICROMETERS                                                                   Schut for Precision

Inside micrometers with interchangeable anvils

  Screw thread micrometers for internal measurements of pitch diameters. The interchangeable anvils
allow measurements of several kinds of screw thread.

	 Measuring range: 75 - 300 mm.                              	 Insert shaft: ø 5 mm.
	 Graduation: 0.01 mm.                                       	 Delivery incl. setting gauge for metric thread,
	 Locking screw (125 - 300 mm).
                                                                60° flank angle.

Item No. Measuring 	 Accuracy 	 Price                         Item No. Threads per inch Price EUR
           range/mm          mm             EUR
                                                              Inserts for Whitworth threads,
Inside micrometers without inserts:                           55° flank angle, per pair:
906.924 	 75	-	100 	 ± 0.035 96.00                            906.940 	  60	 -	48             22.30
906.925 	 100	-	125 	 ± 0.035 107.00                          906.941 	  48	 -	40             22.30
906.926 	 125	-	150 	 ± 0.035 119.00                          906.942 	  40	 -	32             22.30
906.927 	 150	-	175 	 ± 0.035 130.00                          906.944 	  32	 -	24             22.30
906.928 	 175	-	200 	 ± 0.045 142.00                          906.945 	  24	 -	18             22.30
906.929 	 200	-	225 	 ± 0.045 153.00                          906.946 	  18	 -	14             22.30
906.930 	 225	-	250 	 ± 0.045 164.00                          906.947 	  14	 -	10             22.30
906.931 	 250	-	275 	 ± 0.045 176.00                          906.948 	  10	 -	 7             22.30
906.932 	 275	-	300 	 ± 0.055 187.00                          906.949 	  7	 -	 4.5            22.30
                                                              906.950 	  4.5	-	 3.5           22.30

                                                              906.951 Set 60 - 3.5            186.00

Item No.   Pitch/mm                         Price EUR         Item No. Threads per inch Price EUR

Inserts for metric threads,                       22.30       Inserts for UN, UNC and UNF threads,
60° flank angle, per pair:                        22.30       60° flank angle, per pair:
906.933 	  0.4	-	0.5                              22.30       906.952 	  64	 -	48             22.30
906.934 	  0.6	-	0.9                              22.30       906.953 	  44	 -	28             22.30
906.935 	  1	 -	1.75                              22.30       906.954 	  24	 -	14             22.30
906.936 	  2	 -	3                                 22.30       906.955 	  13	 -	 9             22.30
906.937 	  3.5	-	5                              111.00        906.956 	  8	 -	 5              22.30
906.938 	  5.5	-	7                                            906.957 	  4.5	-	 3.5           22.30
                                                                                                                  C04.282.EN.20250321
906.939 Set 0.4 - 7                                           906.958 Set 64 - 3.5            111.00

© 2025, Schut Geometrische Meettechniek bv               176  Measuring instruments and systems 2025/2026
