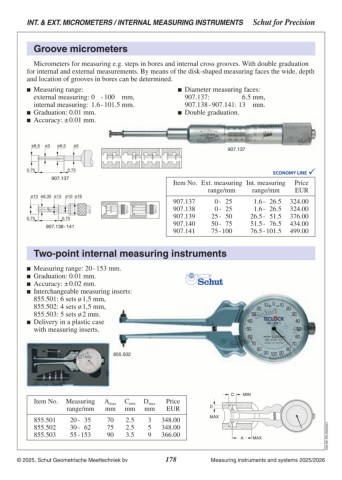

P. 178

INT. & EXT. MICROMETERS / INTERNAL MEASURING INSTRUMENTS Schut for Precision

Groove micrometers

  Micrometers for measuring e.g. steps in bores and internal cross grooves. With double graduation
for internal and external measurements. By means of the disk-shaped measuring faces the wide, depth
and location of grooves in bores can be determined.

	 Measuring range: 	                            	 Diameter measuring faces:
  external measuring: 0   - 100   mm, 	             907.137:	      6.5 mm,
  internal measuring:	 1.6 - 101.5 mm.              907.138 - 907.141: 13   mm.
                                                 	 Double graduation.
	 Graduation: 0.01 mm.
	 Accuracy: ± 0.01 mm.

ø6.5 ø3 ø6.5 ø5                                                907.137

0.75  0.75

      907.137                               Item No. Ext. measuring 	 Int. measuring 	 Price
                                                           range/mm range/mm EUR

ø13 ø6.35 ø13 ø10 ø16                       907.137 	   0	-	 25         	 1.6	-	 26.5   324.00
                                            907.138 	   0	-	 25         	 1.6	-	 26.5   324.00
0.75  0.75                                  907.139 	  25	-	 50         	 26.5	-	 51.5  376.00
                                            907.140 	  50	-	 75         	 51.5	-	 76.5  434.00
      907.138 - 141                         907.141 	  75	-	100         	 76.5	-	101.5  499.00

  Two-point internal measuring instruments

	 Measuring range: 20 - 153 mm.
	 Graduation: 0.01 mm.
	 Accuracy: ± 0.02 mm.
	 Interchangeable measuring inserts:

  855.501: 6 sets ø 1,5 mm,
  855.502: 4 sets ø 1,5 mm,
  855.503: 5 sets ø 2 mm.
	 Delivery in a plastic case
  with measuring inserts.

                       855.502

                                                               C MIN

Item No. Measuring 	 Amax 	 Cmin 	 Dmax 	 Price        D
              range/mm mm mm mm EUR                    MAX

855.501 	 20	-	 35     	 70 	 2.5 	 3       348.00                      A MAX                        C04.281.EN.20250321
855.502 	 30	-	 62     	 75 	 2.5 	 5       348.00
855.503 	 55	-	153     	 90 	 3.5 	 9       366.00

© 2025, Schut Geometrische Meettechniek bv  178        Measuring instruments and systems 2025/2026
