P. 154

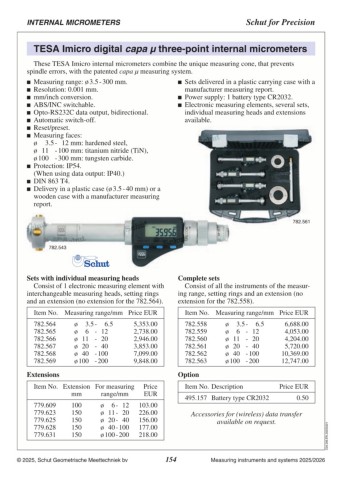

INTERNAL MICROMETERS Schut for Precision
TESA Imicro three-point internal micrometers
The Imicro measuring system has a unique combination of a threaded cone and three measuring
arms. This makes the TESA Imicro a highly accurate measuring instrument.
Measuring range: ø 3.5 - 300 mm. 779.542
Graduation: 0.001 mm (ø 3.5 - 12 mm),
0.005 mm (ø 11 - 100 mm),
0.01 mm (ø 100 - 300 mm).
Measuring faces:
ø 3.5 - 12 mm: hardened steel,
ø 11 - 100 mm: titanium nitride (TiN),
ø 100 - 300 mm: tungsten carbide.
DIN 863 T4.
Delivery in a plastic case with a
manufacturer measuring report.
Item No. Measuring Accuracy Repeat- Length/mm Price
range mm ability A B C EUR
mm mm 986.00
986.00
779.571 ø 3.5 - 4 ± 0.004 0.004 2 1.5 20 990.00 C C04.204.EN.20250106
779.572 ø 4 - 4.5 ± 0.004 0.004 2 1.5 20 990.00 B
779.573 ø 4.5 - 5.5 ± 0.004 0.004 2 1.5 25 495.00
779.574 ø 5.5 - 6.5 ± 0.004 0.004 2 1.5 25 498.00 A
779.481 ø 6 - 8 ± 0.004 0.004 2.5 2.5 52 504.00
779.482 ø 8 - 10 ± 0.004 0.004 2.5 2.5 52 549.00 The threaded cone
779.483 ø 10 - 12 ± 0.004 0.004 2.5 2.5 52 553.00 prevents spindle errors
779.497 ø 11 - 14 ± 0.004 0.004 3.5 4 77 560.00 (Abbe-comparator
779.498 ø 14 - 17 ± 0.004 0.004 3.5 4 77 628.00 principle).
779.499 ø 17 - 20 ± 0.004 0.004 3.5 4 77 638.00
779.515 ø 20 - 25 ± 0.004 0.004 7 7 78 647.00
779.516 ø 25 - 30 ± 0.004 0.004 7 7 78 658.00
779.517 ø 30 - 35 ± 0.004 0.004 7 7 78 744.00
779.518 ø 35 - 40 ± 0.004 0.004 7 7 78 755.00
779.539 ø 40 - 50 ± 0.004 0.004 11 12 84 769.00
779.540 ø 50 - 60 ± 0.005 0.005 11 12 84 779.00
779.541 ø 60 - 70 ± 0.005 0.005 11 12 84 793.00
779.542 ø 70 - 80 ± 0.005 0.005 11 12 84 823.00
779.543 ø 80 - 90 ± 0.005 0.005 11 12 84 1,467.00
779.544 ø 90 - 100 ± 0.005 0.005 11 12 84 1,475.00
779.553 ø 100 - 125 ± 0.006 0.006 26 18 81 1,483.00
779.554 ø 125 - 150 ± 0.006 0.006 26 18 81 1,527.00
779.555 ø 150 - 175 ± 0.007 0.007 26 18 81 2,223.00
779.556 ø 175 - 200 ± 0.007 0.007 26 18 81 2,249.00
779.562 ø 200 - 225 ± 0.008 0.008 26 18 81 2,274.00
779.563 ø 225 - 250 ± 0.008 0.008 26 18 81 2,311.00
779.564 ø 250 - 275 ± 0.008 0.008 26 18 81
779.565 ø 275 - 300 ± 0.008 0.008 26 18 81
© 2025, Schut Geometrische Meettechniek bv 154 Measuring instruments and systems 2023/2024
