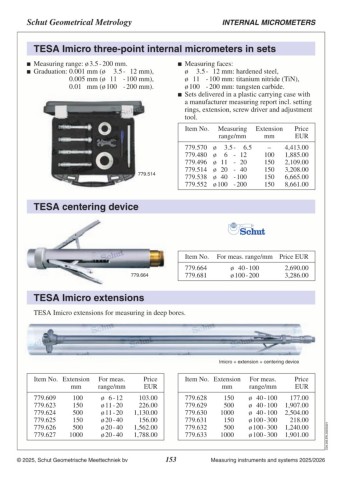

P. 153
Schut Geometrical Metrology INTERNAL MICROMETERS
TESA Imicro three-point internal micrometers in sets
Measuring range: ø 3.5 - 200 mm. Measuring faces:
Graduation: 0.001 mm (ø 3.5 - 12 mm), ø 3.5 - 12 mm: hardened steel,
ø 11 - 100 mm: titanium nitride (TiN),
0.005 mm (ø 11 - 100 mm), ø 100 - 200 mm: tungsten carbide.
0.01 mm (ø 100 - 200 mm).
Sets delivered in a plastic carrying case with
779.514 a manufacturer measuring report incl. setting
rings, extension, screw driver and adjustment
tool.
Item No. Measuring Extension Price
range/mm mm EUR
779.570 ø 3.5 - 6.5 – 4,413.00
779.480 ø 6 - 12 100 1,885.00
779.496 ø 11 - 20 150 2,109.00
779.514 ø 20 - 40 150 3,208.00
779.538 ø 40 - 100 150 6,665.00
779.552 ø 100 - 200 150 8,661.00
TESA centering device
Item No. For meas. range/mm Price EUR
779.664 779.664 ø 40 - 100 2,690.00
779.681 ø 100 - 200 3,286.00
TESA Imicro extensions
TESA Imicro extensions for measuring in deep bores.
Imicro + extension + centering device
Item No. Extension For meas. Price Item No. Extension For meas. Price
mm range/mm EUR mm range/mm EUR
779.609 100 ø 6 - 12 103.00 779.628 150 ø 40 - 100 177.00 C04.205.EN.20250321
779.623 150 ø 11 - 20 226.00 779.629 500 ø 40 - 100 1,907.00
779.624 500 ø 11 - 20 1,130.00 779.630 1000 ø 40 - 100 2,504.00
779.625 150 ø 20 - 40 156.00 779.631 150 ø 100 - 300
779.626 500 ø 20 - 40 1,562.00 779.632 500 ø 100 - 300 218.00
779.627 1000 ø 20 - 40 1,788.00 779.633 1000 ø 100 - 300 1,240.00
1,901.00
