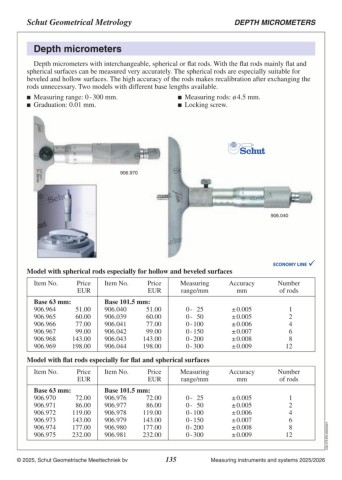

Schut Geometrical Metrology                                             DEPTH MICROMETERS

Depth micrometers

  Depth micrometers with interchangeable, spherical or flat rods. With the flat rods mainly flat and
spherical surfaces can be measured very accurately. The spherical rods are especially suitable for
beveled and hollow surfaces. The high accuracy of the rods makes recalibration after exchanging the
rods unnecessary. Two models with different base lengths available.

	 Measuring range: 0 - 300 mm.                         	 Measuring rods: ø 4.5 mm.
	 Graduation: 0.01 mm.                                 	 Locking screw.

                                 906.970

                                                                                      906.040

Model with spherical rods especially for hollow and beveled surfaces

Item No.     Price  Item No.                Price       Measuring 	     Accuracy 	       Number
             EUR                            EUR         range/mm           mm             of rods
                                                                                      	1
Base 63 mm:  51.00  Base 101.5 mm:                 	 0	-	 25             ± 0.005      	2
906.964             906.040                 51.00  	 0	-	 50         	   ± 0.005      	4
906.965      60.00  906.039                 60.00  	 0	-	100         	   ± 0.006      	6
906.966      77.00  906.041                 77.00  	 0	-	150         	   ± 0.007      	8
906.967      99.00  906.042                 99.00  	 0	-	200         	   ± 0.008      	 12
906.968 143.00      906.043 143.00                 	 0	-	300         	   ± 0.009
906.969 198.00      906.044 198.00                                   	                   Number
                                                                                          of rods
Model with flat rods especially for flat and spherical surfaces                       	1
                                                                                      	2
Item No.     Price  Item No.                Price       Measuring 	     Accuracy 	    	4
             EUR                            EUR         range/mm           mm         	6
                                                                                      	8
Base 63 mm:         Base 101.5 mm:                                   	   ± 0.005      	 12
906.970      72.00  906.976                 72.00  	 0	-	 25         	   ± 0.005
906.971      86.00  906.977                 86.00  	 0	-	 50         	   ± 0.006
906.972 119.00      906.978 119.00                 	 0	-	100         	   ± 0.007
906.973 143.00      906.979 143.00                 	 0	-	150         	   ± 0.008
906.974 177.00      906.980 177.00                 	 0	-	200         	   ± 0.009                              C02.275.EN.20250321
906.975 232.00      906.981 232.00                 	 0	-	300

© 2025, Schut Geometrische Meettechniek bv         135           Measuring instruments and systems 2025/2026
