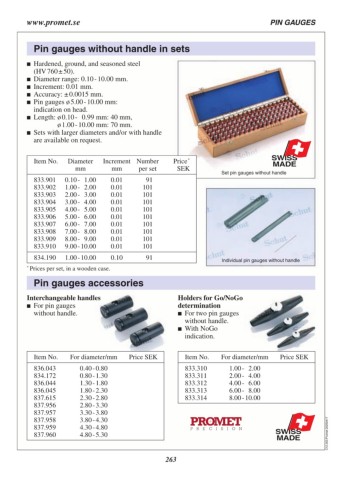

P. 263
www.promet.se PIN GAUGES
Pin gauges without handle in sets
Hardened, ground, and seasoned steel
(HV 760 ± 50).
Diameter range: 0.10 - 10.00 mm.
Increment: 0.01 mm.
Accuracy: ± 0.0015 mm.
Pin gauges ø 5.00 - 10.00 mm:
indication on head.
Length: ø 0.10 - 0.99 mm: 40 mm,
ø 1.00 - 10.00 mm: 70 mm.
Sets with larger diameters and/or with handle
are available on request.
Item No. Diameter Increment Number Price *
mm mm per set SEK
Set pin gauges without handle
833.901 0.10 - 1.00 0.01 91 26,280.00 Individual pin gauges without handle
833.902 1.00 - 2.00 0.01 101 17,472.00
833.903 2.00 - 3.00 0.01 101 17,316.00
833.904 3.00 - 4.00 0.01 101 21,480.00
833.905 4.00 - 5.00 0.01 101 21,480.00
833.906 5.00 - 6.00 0.01 101 21,480.00
833.907 6.00 - 7.00 0.01 101 26,280.00
833.908 7.00 - 8.00 0.01 101 26,280.00
833.909 8.00 - 9.00 0.01 101 26,280.00
833.910 9.00 - 10.00 0.01 101 26,280.00
834.190 1.00 - 10.00 0.10 91 20,688.00
* Prices per set, in a wooden case.
Pin gauges accessories
Interchangeable handles Holders for Go/NoGo
For pin gauges determination
For two pin gauges
without handle.
without handle.
With NoGo
indication.
Item No. For diameter/mm Price SEK Item No. For diameter/mm Price SEK
836.043 0.40 - 0.80 118.80 833.310 1.00 - 2.00 405.60
834.172 0.80 - 1.30 118.80 833.311 2.00 - 4.00 450.00
836.044 1.30 - 1.80 118.80 833.312 4.00 - 6.00 828.00
836.045 1.80 - 2.30 118.80 833.313 6.00 - 8.00
837.615 2.30 - 2.80 118.80 833.314 8.00 - 10.00 1,116.00
837.956 2.80 - 3.30 118.80 1,260.00
837.957 3.30 - 3.80 118.80
837.958 3.80 - 4.30 118.80 C12.203.Promet.20240517
837.959 4.30 - 4.80 118.80
837.960 4.80 - 5.30 118.80
© 2024, Schut Geometrische Meettechniek bv 263 Promet Precision 2023/2024-D
